1977 Yamaha LB80 Frame OEM Parts Diagram

Submodel LB80_3D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

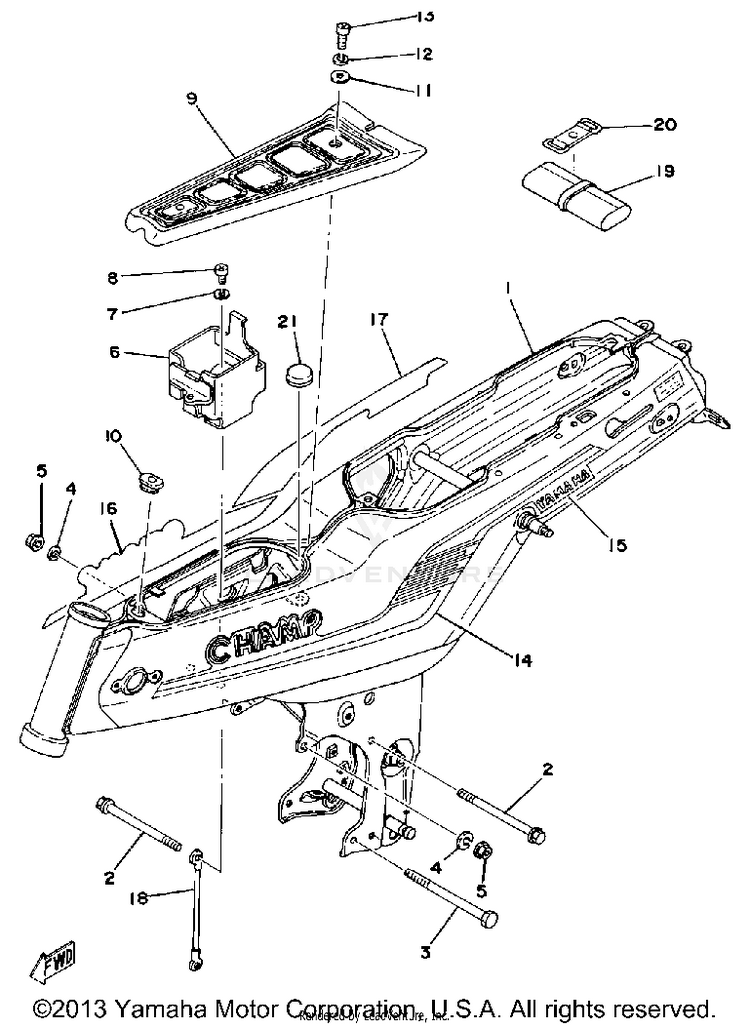

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11T8-21110-01-26FRAME$205.99$170.97Usually ships in 7-10 business days
295817-08120-00

(replaces part #
95811-08120-00)

BOLT, FLANGE$5.49$4.284 In-Stock
390101-08538-00BOLT$13.49$11.06Usually ships in 7-10 business days
492990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
595704-08500-00

(replaces part #
95701-08500-00)

NUT, FLANGE$9.49$7.4010+ In-Stock
61M3-21393-02-00BRACKET, BATT BOX$4.13$3.72Usually ships in 7-10 business days
792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
897885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
91M3-28385-00-00COVER, LOWER$10.18$8.35Not Shipping
1090480-01401-00GROMMET (41Y)$9.49$7.4010+ In-Stock
1192990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
1292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1397880-06018-00

(replaces part #
98580-06018-00)

SCREW, PAN HEAD$4.70$4.048 In-Stock
141T8-24254-00-00GRAPHIC, FUEL TNK 7$3.96$3.56Usually ships in 7-10 business days
151M3-24255-00-00GRAPHIC, FUEL TNK 8$3.65$3.28Usually ships in 7-10 business days
161T8-24256-00-00GRAPHIC, FUEL TNK 9$7.68$6.91Usually ships in 7-10 business days
171M3-24257-00-00GRPHC, FUEL TANK 10$3.96$3.56Usually ships in 7-10 business days
181M3-82519-01-00WIRE, EARTH LEAD$0.87$0.78Usually ships in 7-10 business days
191M3-28100-10-00TOOL KIT$21.78$17.86Usually ships in 7-10 business days
2021V-21376-00-00BAND, TOOL$7.49$5.845 In-Stock
211L9-24741-00-00PAD, SEAT$10.99$8.5710+ In-Stock
