1977 Yamaha LB80 Exhaust OEM Parts Diagram

Submodel LB80_3D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

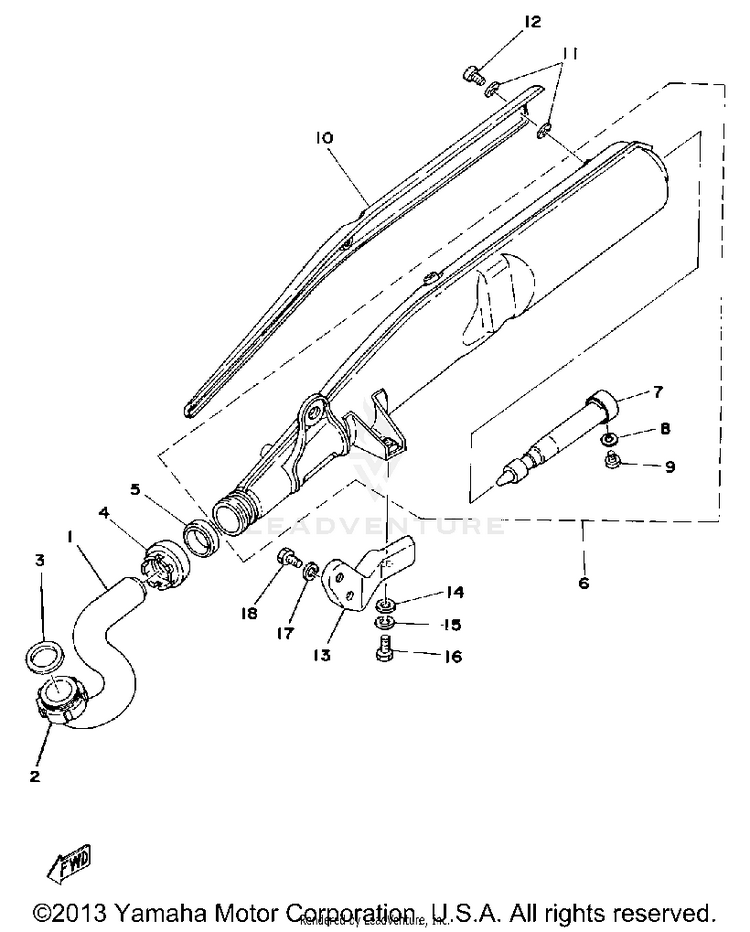

EXHAUST

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11M4-14611-00-00PIPE, EXHAUST L$12.62$10.35Usually ships in 7-10 business days
21L4-14612-00-00NUT, RING$17.99$14.75Usually ships in 7-10 business days
33MT-14613-00-00

(replaces part #
132-14613-00-00)

GASKET, EXST PIPE$11.99$9.355 In-Stock
4395-14713-00-00NUT, MUFFLER JOINT$17.49$14.34Usually ships in 7-10 business days
53NA-14714-01-00GASKET, MUFFLER$27.99$22.95Usually ships in 7-10 business days
61T8-14710-01-00MUFFLER ASSEMBLY L$72.03$56.18Not Shipping
71T8-14752-00-00PIPE, OUTLET$12.92$10.59Usually ships in 7-10 business days
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
997885-06008-00

(replaces part #
98580-06008-00)

SCREW, PAN HEAD$1.20$1.032 In-Stock
101M3-14718-01-93PROTECTOR, MUFF 1$12.99$10.65Not Shipping
1190202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
1298580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.409 In-Stock
131M3-21445-01-00STAY, MUFFLER 1$5.04$4.54Usually ships in 7-10 business days
1492990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
1592990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1690101-08691-00

(replaces part #
97313-08018-00)

BOLT, HEX-$5.0410+ In-Stock
1792990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1890101-08691-00

(replaces part #
97313-08018-00)

BOLT, HEX-$5.0410+ In-Stock
