1977 Yamaha LB80 Kick Starter OEM Parts Diagram

Submodel LB80_3D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

KICK STARTER

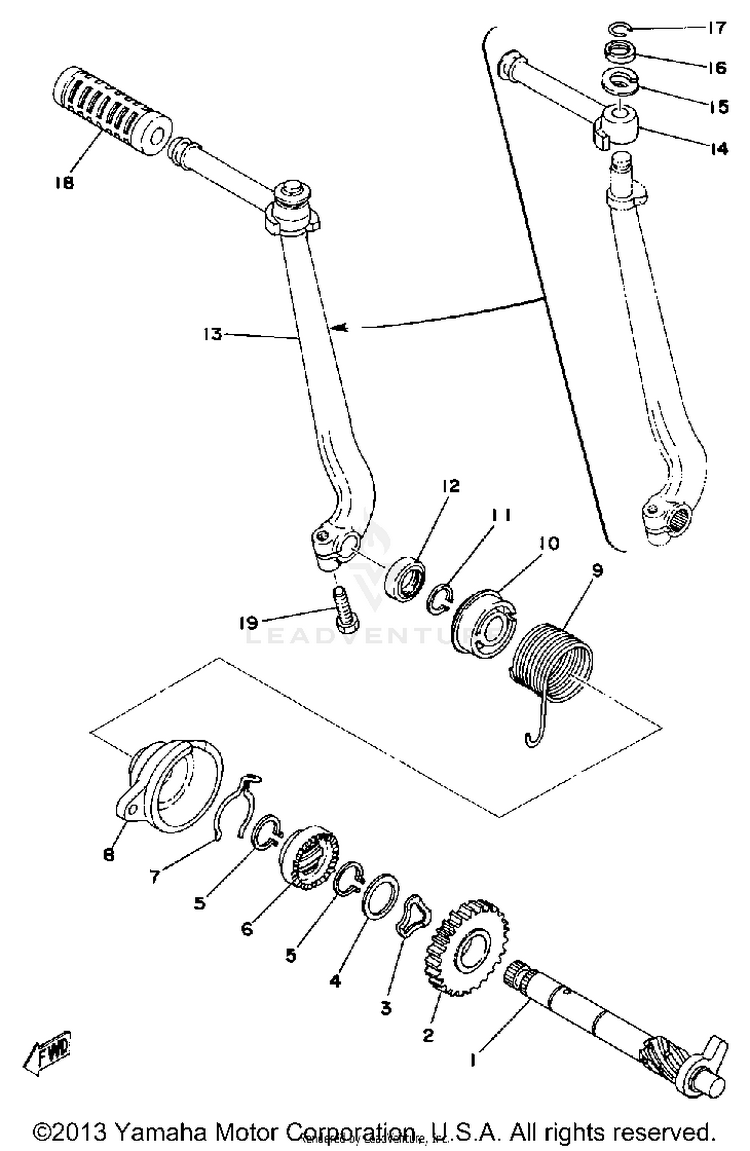

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1517-15660-01-00KICK AXLE ASSEMBLY$131.99$102.95Usually ships in 7-10 business days
2296-15641-00-00GEAR, KICK$16.32$13.38Usually ships in 7-10 business days
390206-19027-00WASHER, WAVE$8.49$7.64Usually ships in 7-10 business days
4296-15644-00-00SHIM$5.99$5.39Usually ships in 7-10 business days
599009-19400-00CIRCLIP$9.49$7.407 In-Stock
6296-15671-00-00WHEEL, RATCHET$53.99$42.11Usually ships in 7-10 business days
790468-26046-00CLIP$3.85$3.46Usually ships in 7-10 business days
81W7-15664-01-00

(replaces part #
1W7-15664-00-00)

GUIDE,SPRING$11.99$9.83Usually ships in 7-10 business days
990508-26136-00SPRING, TORSION$16.49$12.86
10132-15676-01-00COVER, SPRING$10.99$9.01Usually ships in 7-10 business days
1199009-15400-00CIRCLIP (55X)$9.49$7.4010+ In-Stock
1293109-15001-00OIL SEAL, SDO-TYPE$9.49$7.408 In-Stock
131L7-15610-00-93UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
14214-15612-09-00LEVER, KICK$15.49$12.70Not Shipping
1590504-18031-00SPRING, COMPRESSION$10.49$8.188 In-Stock
1690209-10210-00

(replaces part #
90209-10108-00)

WASHER,SPEC'L SHAPE$2.35$2.12Not Shipping
1793440-10028-00CIRCLIP, OUTER$2.55$2.30Not Shipping
18156-15618-01-00COVER, KICK LEVER$8.49$6.6210+ In-Stock
1997017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
