1978 Yamaha DT100 Exhaust OEM Parts Diagram

Submodel DT100E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

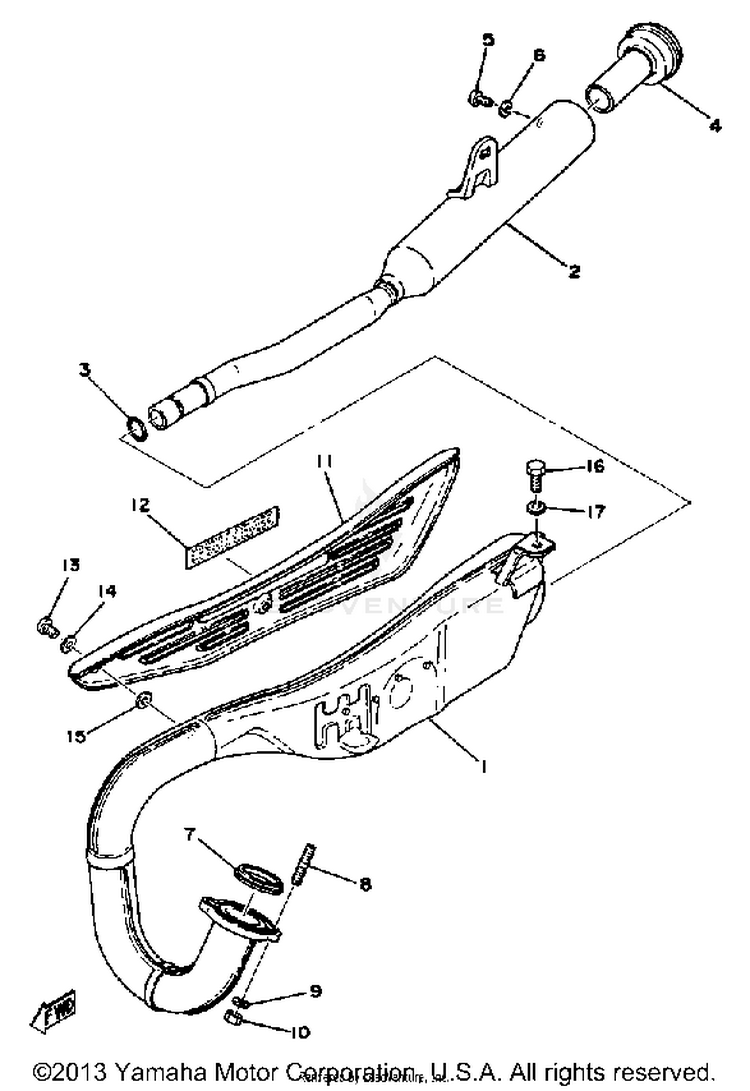

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-1T9-14718-00-V3PROTECTOR, MUFF 1 | LEAVES GREEN$13.49$11.06Usually ships in 7-10 business days
-2F5-14729-01-00EMBLEM, PROTECTOR$4.56$4.10Usually ships in 7-10 business days
-3A3-14729-00-00EMBLEM, PROTECTOR$2.97$2.67Usually ships in 7-10 business days
-1T9-14718-00-T5PROTECTOR, MUFF 1 | U.R. MAXIM RED$19.99$16.39Usually ships in 7-10 business days
-1T9-14718-00-9GPROTECTOR, MUFF 1 | U.R. FROST SILVER$22.99$18.85Usually ships in 7-10 business days
13UL-14610-01-00

(replaces part #
3UL-14610-00-00)

EXHAUST PIPE ASSEMBLY 1$236.99$184.85Usually ships in 7-10 business days
21T9-14753-00-00SILENCER, EXHAUST$238.99$186.41Not Shipping
393210-16290-00O-RING$9.49$7.4010+ In-Stock
4438-14752-00-00PIPE, OUTLET$79.99$62.39Usually ships in 7-10 business days
598580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.405 In-Stock
692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
73PA-14613-10-00

(replaces part #
152-14613-00-00)

GASKET, EXHAUST PIPE$16.49$12.8610+ In-Stock
890116-06016-00BOLT, STUD$5.99$4.672 In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1095380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
111T9-14718-00-36PROTECTOR, MUFF 1 | CLEAN WHITE$66.99$52.25Usually ships in 7-10 business days
122F5-14729-00-00EMBLEM, PROTECTOR$3.16$2.84Usually ships in 7-10 business days
1398980-06010-00

(replaces part #
98903-06010-00)

SCREW, BIND$10.49$8.6310+ In-Stock
1490202-05188-00

(replaces part #
90202-05005-00)

WASHER, PLATE$9.49$7.404 In-Stock
1590202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
1690101-08691-00

(replaces part #
97313-08018-00)

BOLT, HEX-$5.0410+ In-Stock
1792990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
