1978 Yamaha DT100 Shift Shaft Pedal OEM Parts Diagram

Submodel DT100E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

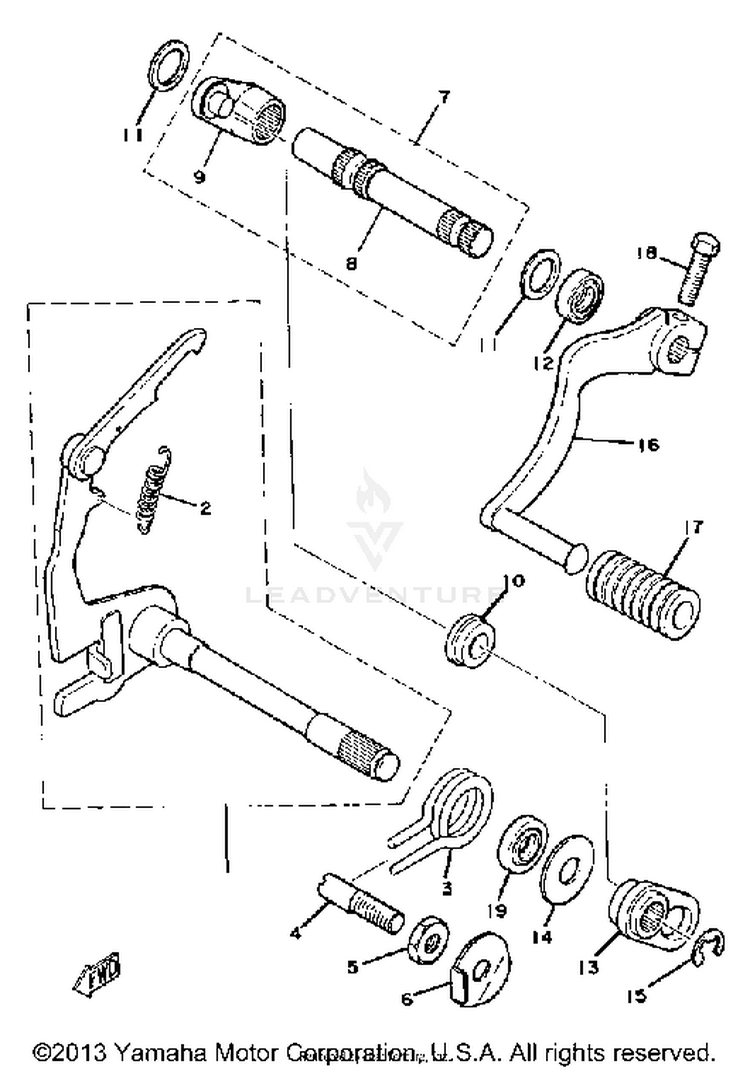

SHIFT SHAFT PEDAL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1558-18101-00-00SHIFT SHAFT ASSEMBLY$79.99$62.39Not Shipping
290506-09009-00SPRING, TENSION$9.49$7.402 In-Stock
390508-32207-00SPRING, TORSION (132-18124-00)$11.49$9.42Usually ships in 7-10 business days
490149-08094-00SCREW, SPECIAL SHAPE$8.49$6.62
590170-08193-00

(replaces part #
90170-08029-00)

NUT, HEXAGON$4.65$4.0010+ In-Stock
690215-08014-00WASHER, LOCK$6.49$5.061 In-Stock
7401-18102-02-00

(replaces part #
401-18102-01-00)

SHIFT SHAFT ASSEMBLY 2$95.99$74.87Not Shipping
8401-18155-02-00SHAFT, SHIFT 2$16.99$13.93Not Shipping
9401-18151-00-00LEVER, SHIFT 3$16.52$13.55Not Shipping
10401-18178-00-00ROLLER, SHIFT LEVER$21.99$18.03Usually ships in 7-10 business days
11401-18334-00-00SHIM$7.49$6.742 In-Stock
1293109-12012-00OIL SEAL$11.49$8.9610+ In-Stock
13401-18152-01-00LEVER, SHIFT 4$28.99$23.77Usually ships in 7-10 business days
1490201-12575-00WASHER, PLATE$9.49$7.4010+ In-Stock
1599001-08600-00CIRCLIP$9.49$7.405 In-Stock
161X0-18111-00-00

(replaces part #
1T9-18111-00-00)

PEDAL, SHIFT$31.99$26.23Not Shipping
17132-18113-01-00COVER, CHANGE PEDAL$8.49$6.6210+ In-Stock
1897017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
1993101-12173-00

(replaces part #
93101-12060-00)

OIL SEAL$14.49$11.3010+ In-Stock
