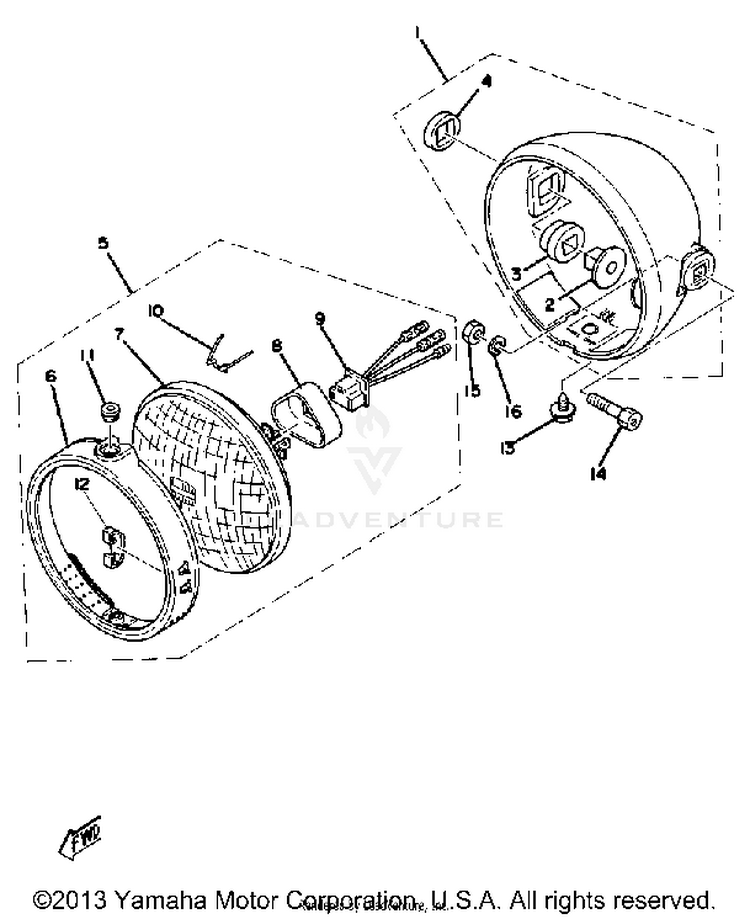

1978 Yamaha DT100 Headlight Dt100e E011001-F OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1M1-84130-60-00	BODY ASSEMBLY, HEADLIGHT (1M1-8 \| LOW GLOSS BLK	$123.99	$96.71	Usually ships in 7-10 business days
2	498-84145-60-00	COLLAR, BODY FITTING	$7.49	$6.74	Usually ships in 7-10 business days
3	498-84163-60-00	DAMPER	$8.49	$7.64	Usually ships in 7-10 business days
4	1M1-84164-60-00	DAMPER	$28.99	$23.77	Usually ships in 7-10 business days
5	UNA-VAILA-BL-EI	PULLY, ALTERNATOR 2 GROOVE	$0.00	$0.00	Not Shipping
6	3J0-84195-60-00 (replaces part # 1M1-84195-61-00)	RING, RETAINING	$62.99	$49.13	Usually ships in 7-10 business days
7	498-84120-61-00	LENS ASSEMBLY	$88.99	$69.41	Not Shipping
8	341-84397-61-00	COVER, SOCKET	$26.99	$22.13	Usually ships in 7-10 business days
9	371-84312-60-00	SOCKET	$31.99	$26.23	Usually ships in 7-10 business days
10	1M1-84124-60-00	SPRING, SET	$9.49	$8.54	Usually ships in 7-10 business days
11	1M1-84133-60-00	COLLAR, SCREW	$8.49	$7.64	Usually ships in 7-10 business days
12	498-84128-60-00	SPACER	$21.59	$17.70	Usually ships in 7-10 business days
13	1M1-84137-60-00	BOLT, SPECIAL	$7.49	$6.74	Usually ships in 7-10 business days
14	90109-08448-00	BOLT	$5.49	$4.94	Usually ships in 7-10 business days
15	95333-08600-00	NUT	$3.80	$3.47	10+ In-Stock
16	92990-08100-00	WASHER, SPRING	$5.60	$4.37	10+ In-Stock
