1978 Yamaha DT100 Seat OEM Parts Diagram

Submodel DT100E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

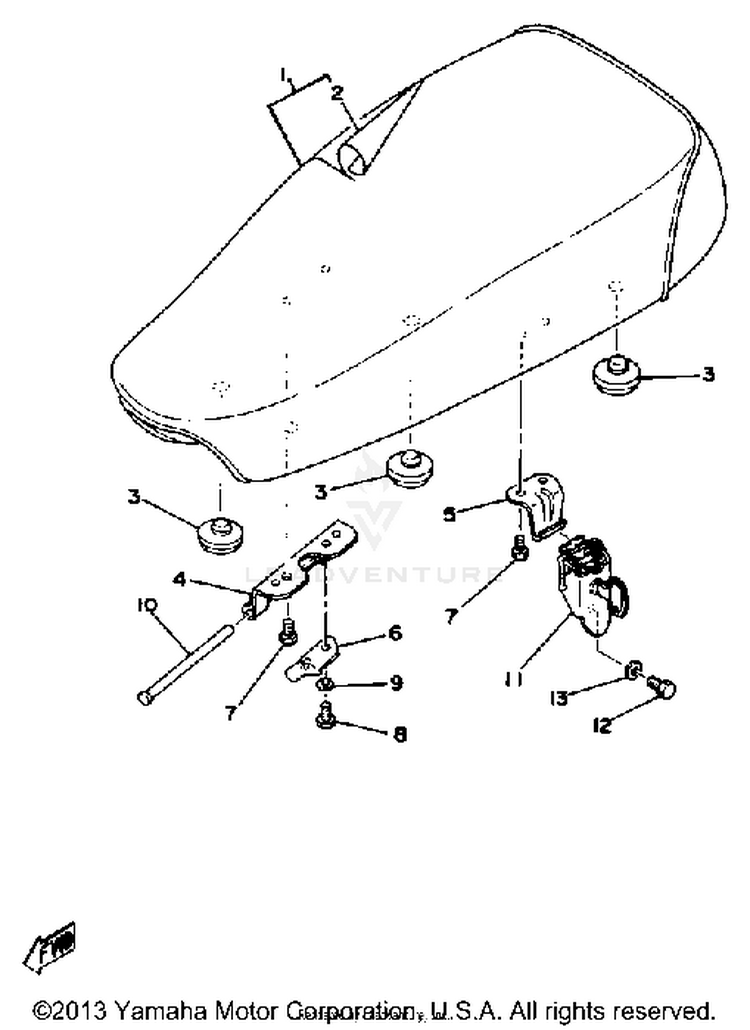

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11T9-W2471-01-00SINGLE SEAT ASSEMBLY$318.99$248.81Not Shipping
21T9-24711-00-00COVER, SINGLE SEAT$82.99$64.73Not Shipping
31L9-24741-00-00PAD, SEAT$10.99$8.5710+ In-Stock
4538-24726-00-00HINGE, SEAT$25.99$21.31Not Shipping
5278-24728-00-00BRACKET, SEAT$8.49$7.64Not Shipping
61T9-24768-00-00STOPPER$6.49$5.84Not Shipping
790101-06304-00BOLT$8.49$6.624 In-Stock
897013-06012-00BOLT$6.49$5.0610+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
101K8-24774-00-00PIN$7.99$7.19Usually ships in 7-10 business days
11526-24705-00-00SEAT LOCK ASSEMBLY$52.99$41.33Usually ships in 7-10 business days
1297013-06012-00BOLT$6.49$5.0610+ In-Stock
1392990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
