1978 Yamaha DT100 Frame Side Cover OEM Parts Diagram

Submodel DT100E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME SIDE COVER

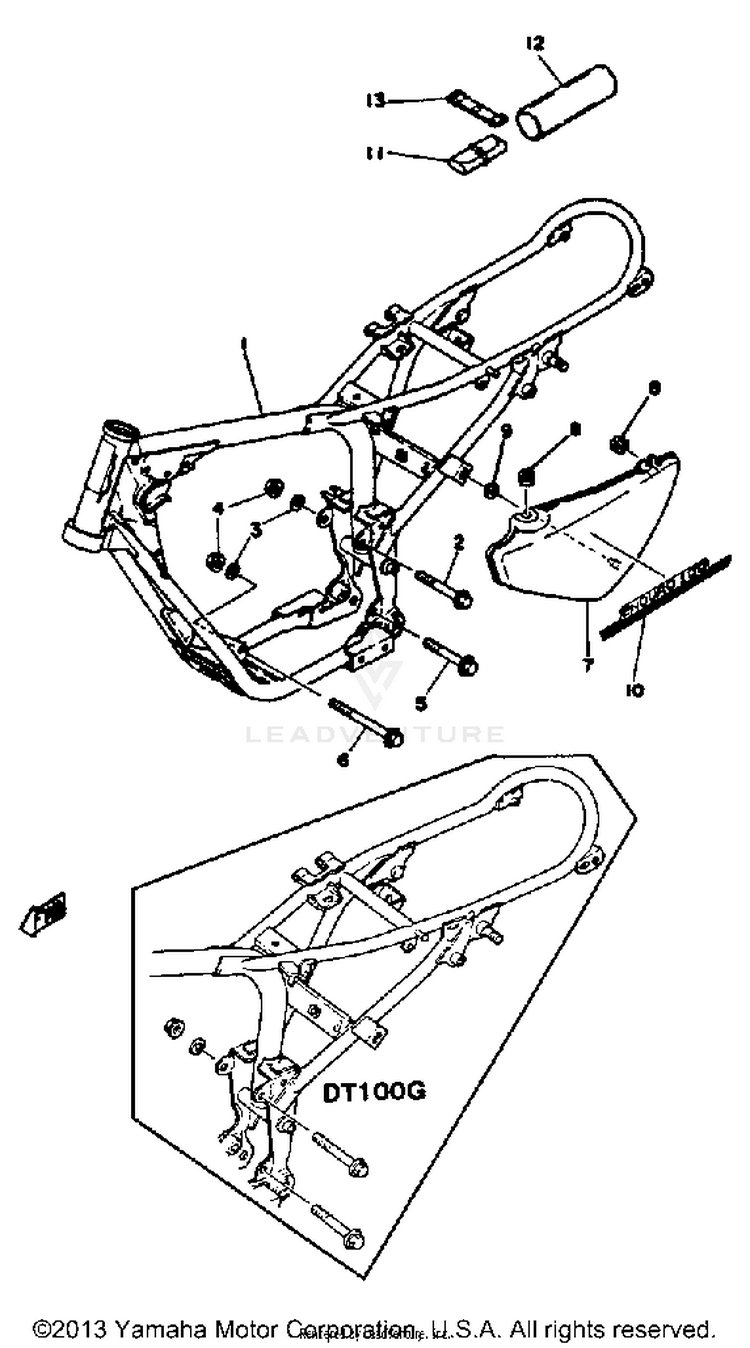

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-3A3-21711-00-9GCOVER, SIDE 1 | U.R. FROST SILVER$18.99$15.57Not Shipping
-2F5-21711-00-00COVER, SIDE 1 | SUNSHINE RED$10.80$8.86Not Shipping
-2F5-21737-10-00EMBLEM | FOR LEAVES GREEN$5.04$4.54Usually ships in 7-10 business days
-2F5-21737-01-00EMBLEM | FOR CLEAN WHITE$6.49$5.84Not Shipping
-2F5-21711-10-00COVER, SIDE 1 | LEAVES GREEN$14.20$11.64Not Shipping
-3A3-21711-00-T5COVER, SIDE 1 | U.R. MAXIM RED$18.99$15.57Not Shipping
-3A3-21737-00-00EMBLEM$4.35$3.92Not Shipping
13A3-21110-01-33FRAME | YAMAHA BLK$210.99$168.27Usually ships in 7-10 business days
290105-08095-00BOLT, WASHER BASED$4.50$4.05Usually ships in 7-10 business days
392990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
495704-08500-00

(replaces part #
95701-08500-00)

NUT, FLANGE$9.49$7.4010+ In-Stock
595817-10075-00

(replaces part #
95811-10075-00)

BOLT, FLANGE$6.49$5.84Usually ships in 7-10 business days
690105-08094-00BOLT, FLANGE$2.95$2.66Usually ships in 7-10 business days
72F5-21711-01-00COVER, SIDE 1 | CLEAN WHITE$27.99$22.95Not Shipping
890480-12053-00GROMMET$8.49$6.6210+ In-Stock
990480-01401-00GROMMET (41Y)$9.49$7.4010+ In-Stock
102F5-21737-00-00EMBLEM$6.68$6.01Not Shipping
111E7-W2810-00-00TOOL KIT$79.99$62.39Usually ships in 7-10 business days
121T9-28171-00-00COVER, TOOL BOX$3.57$3.21Not Shipping
1321V-21376-00-00BAND, TOOL$7.49$5.845 In-Stock
