1978 Yamaha SR500 Clutch OEM Parts Diagram

Submodel SR500E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

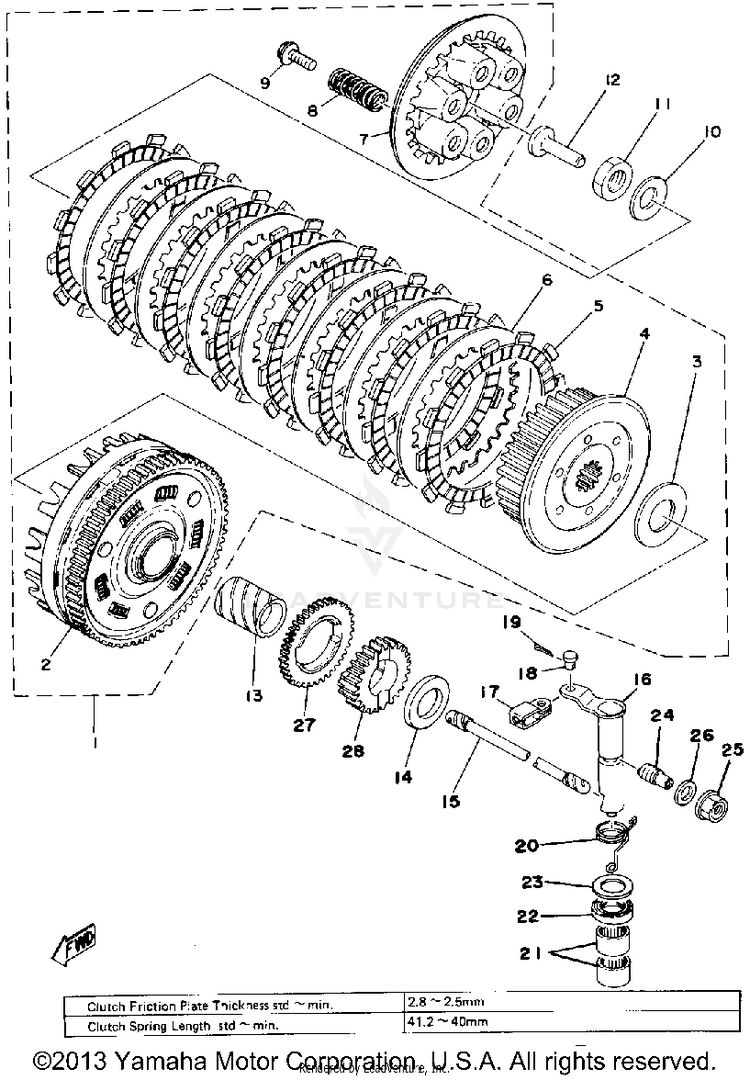

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12J2-16301-00-00CLUTCH ASSEMBLY$64.31$50.16Not Shipping
22J2-16150-00-00PRIMARY DRIVEN GEAR COMP. (77T)$239.99$190.41Usually ships in 7-10 business days
3170-16164-00-00PLATE, THRUST 2$10.99$9.01Usually ships in 7-10 business days
4583-16371-00-00BOSS, CLUTCH$106.99$83.45Usually ships in 7-10 business days
55Y1-16321-00-00PLATE, FRICTION$19.99$15.5910+ In-Stock
6360-16325-10-00

(replaces part #
360-16325-00-00)

PLATE, CLUTCH 2$38.99$30.4110+ In-Stock
7498-16351-00-00PLATE, PRESSURE 1$54.99$42.89Usually ships in 7-10 business days
890501-23391-00SPRING, COMPRESSION$8.49$6.6210+ In-Stock
990159-06010-00SCREW, WITH WASHER$8.49$6.6210+ In-Stock
10214-16119-00-00SPRING, BELLEVILLE$11.99$9.831 In-Stock
1190170-18086-00NUT, CRANKSHAFT$12.49$10.24Usually ships in 7-10 business days
12174-16356-00-00ROD, PUSH 1$22.99$18.85Usually ships in 7-10 business days
1390560-25153-00SPACER$27.99$22.95Usually ships in 7-10 business days
14363-16154-00-00PLATE, THRUST 1$17.99$14.75Usually ships in 7-10 business days
15583-16357-01-00ROD, PUSH 2$48.99$40.17Usually ships in 7-10 business days
16583-16381-00-00AXLE, PUSH LEVER$101.99$79.55Usually ships in 7-10 business days
17214-16389-00-00JOINT$9.49$7.403 In-Stock
1890240-06005-00PIN, CLEVIS$13.49$10.522 In-Stock
1991401-10015-00PIN, COTTER$2.35$2.12Not Shipping
2090508-12279-00SPRING, TORSION$8.49$7.64Usually ships in 7-10 business days
2193315-11720-00BEARING$35.99$28.0710+ In-Stock
2293102-17357-00OIL SEAL$13.49$10.522 In-Stock
2390201-18262-00

(replaces part #
90201-17327-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
24364-16343-00-00SCREW, ADJUSTING$8.49$7.643 In-Stock
25583-16344-00-00NUT, ADJUSTING$35.99$28.072 In-Stock
2690201-12172-00WASHER, PLATE$3.45$2.978 In-Stock
27583-13324-00-00GEAR, DRIVE (42T)$35.99$29.51Usually ships in 7-10 business days
28583-15631-00-00GEAR, KICK PINION$143.99$112.31Not Shipping
