1978 Yamaha SR500 Crankcase Cover OEM Parts Diagram

Submodel SR500E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

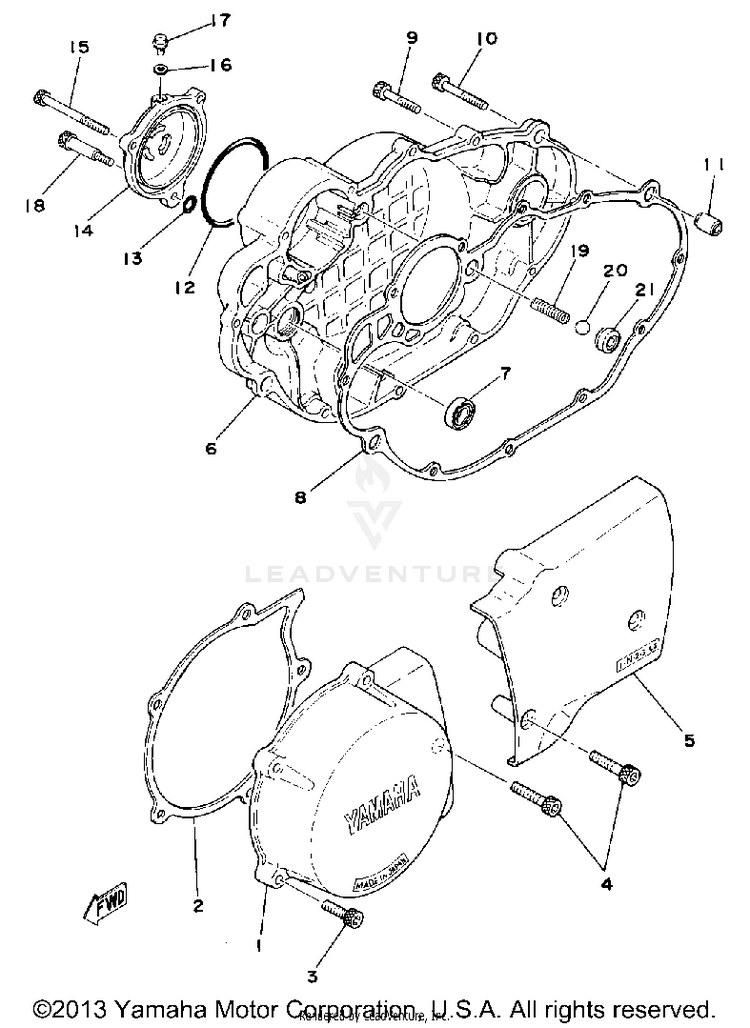

CRANKCASE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-2J2-00000-20-00GSKTKT SR500E/F | SEE GRID H-1 FOR KIT COMPONENT$18.16$14.89Usually ships in 7-10 business days
12J2-15411-00-00COVER, CRANKCASE L$180.99$141.17Usually ships in 7-10 business days
23HT-15451-00-00GASKET, CRCS COVER$26.99$21.055 In-Stock
391317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
491317-06035-00

(replaces part #
91316-06035-00)

BOLT, HEX. SOCKET HEAD$3.90$3.356 In-Stock
53GW-15421-00-00COVER, CRANKCASE R$140.99$111.76Usually ships in 7-10 business days
62J2-W1542-00-00COVER, CRANKCASE 3 (2J2-15431-0$584.99$473.00Usually ships in 7-10 business days
793101-14089-00OIL SEAL$13.49$10.524 In-Stock
83HT-15462-R1-00

(replaces part #
3HT-15462-00-00)

CRANKCASE COVER 3 GASKET$24.99$19.491 In-Stock
990110-06138-00BOLT$6.49$5.0610+ In-Stock
1091317-06040-00

(replaces part #
91316-06040-00)

BOLT, HEX. SOCKET HEAD$4.05$3.4810+ In-Stock
1199530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
1293210-64297-00O-RING$8.99$7.3510+ In-Stock
1393210-07438-00O-RING$9.49$7.404 In-Stock
142J2-13447-00-00COVER, OIL ELEMENT$34.99$28.69Usually ships in 7-10 business days
1591317-06060-00

(replaces part #
91316-06060-00)

BOLT$4.05$3.4810+ In-Stock
1690430-05126-00GASKET$7.49$5.84Not Shipping
1790149-05110-00SCREW$10.49$8.604 In-Stock
1890109-06419-00BOLT$9.49$7.4010+ In-Stock
1990501-05378-00SPRING, COMPRESSION$8.49$7.64Usually ships in 7-10 business days
2093503-08007-00BALL$4.50$3.879 In-Stock
21583-13113-00-00SEAT, CHECK BALL$25.99$20.2710+ In-Stock
