1978 Yamaha SR500 Head Lamp OEM Parts Diagram

Submodel SR500E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEAD LAMP

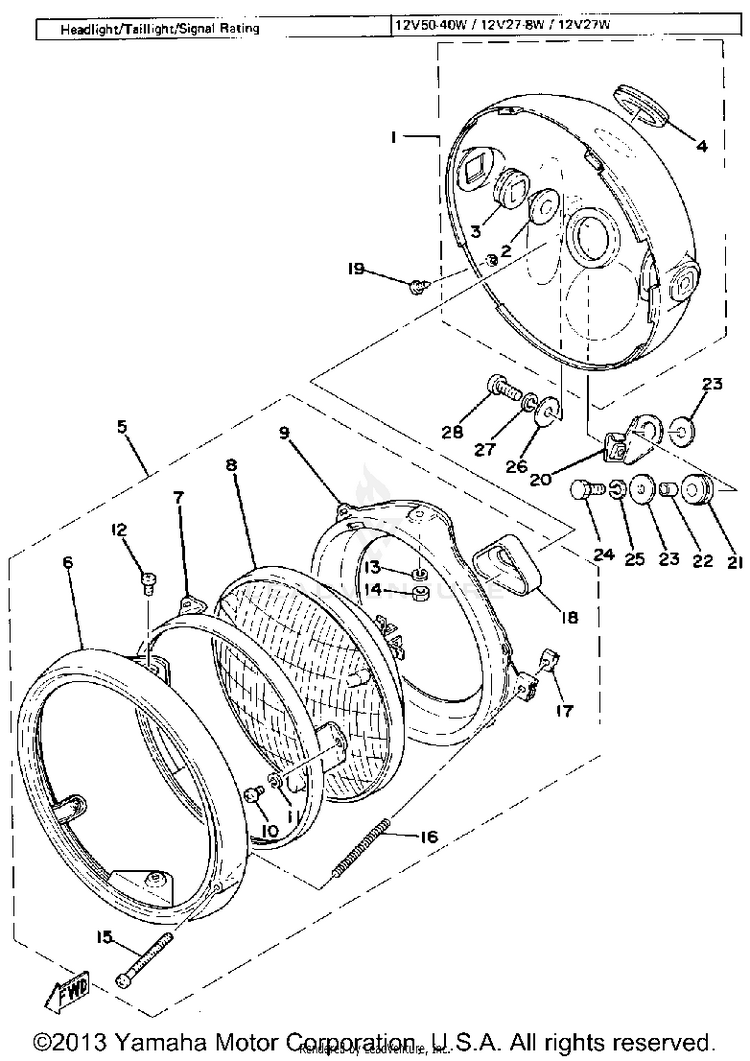

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11JK-84330-00-93BODY ASSEMBLY$271.99$212.15Usually ships in 7-10 business days
2584-84338-60-00COLLAR, BODY FITTING$23.99$19.67Usually ships in 7-10 business days
3584-84345-60-00DAMPER, HEADLIGHT$10.99$9.01Usually ships in 7-10 business days
4214-84153-60-00GROMMET, WIRE HARNESS$8.49$6.623 In-Stock
6341-84315-40-00RIM, HEADLIGHT$154.99$120.89Usually ships in 7-10 business days
72F9-84395-00-00RING, RETAINING$63.99$49.91Usually ships in 7-10 business days
8341-84320-60-00LENS ASSEMBLY$94.99$74.09Not Shipping
92F9-84394-00-00RING, MOUNTING$26.99$22.13Usually ships in 7-10 business days
1098580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
1192990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1297885-05010-00

(replaces part #
98580-05010-00)

SCREW, PAN HEAD$3.15$2.715 In-Stock
1392990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1495380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
1598580-04055-00SCREW, LENS FITTING$10.49$8.184 In-Stock
16341-84332-60-00SPRING, SCREW$10.99$8.576 In-Stock
17198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
18341-84397-61-00COVER, SOCKET$26.99$22.13Usually ships in 7-10 business days
1990152-05005-00SCREW, COUNTERSUNK$4.65$4.002 In-Stock
202J2-84318-00-00STAY, HEADLIGHT 1$15.49$12.70Usually ships in 7-10 business days
2190480-14052-00GROMMET$6.49$5.063 In-Stock
2290387-060A3-00

(replaces part #
90387-06216-00)

COLLAR$9.49$7.402 In-Stock
2390201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
2497017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
2592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2690201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
2792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2898580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.405 In-Stock
