1978 Yamaha SR500 Steering OEM Parts Diagram

Submodel SR500E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

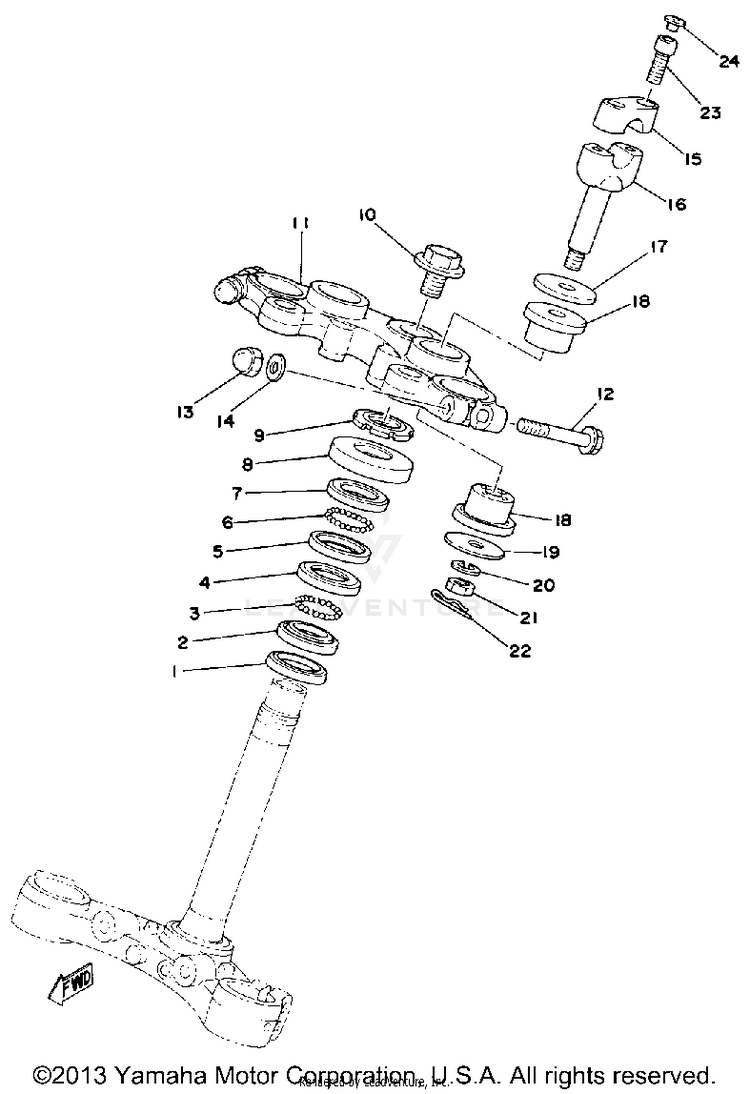

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1164-23462-00-00SEAL, STEERING$8.49$6.628 In-Stock
2B6E-23411-00-00

(replaces part #
156-23411-00-00)

. .RACE, BALL 1$9.49$7.406 In-Stock
393501-04011-00BALL$9.49$7.4010+ In-Stock
4B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
5BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
693503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
7BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
810V-23416-01-00COVER, BALL RACE 2$31.99$26.23Usually ships in 7-10 business days
990179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
1090105-14102-00BOLT, FLANGE$6.49$5.063 In-Stock
112J2-23435-00-98CROWN, HANDLE | LOW GLOSS BLK$121.99$95.15Usually ships in 7-10 business days
1295817-08055-00

(replaces part #
95811-08055-00)

BOLT, FLANGE$4.21$3.6210+ In-Stock
1395303-08800-00NUT (CROWN) (93501-08800-00)$10.49$8.184 In-Stock
1492990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
1599999-01112-00HOLDER, HANDLE UP | LOW GLOSS BLK*$19.49$15.98Usually ships in 7-10 business days
164AA-23442-01-98

(replaces part #
1E6-23442-00-00)

HOLDER,HANDLE LWR | LOW GLOSS BLK$21.26$17.43Not Shipping
1790209-12151-00WASHER, SPEC'L SHAP$3.50$3.15Usually ships in 7-10 business days
181T4-23434-00-00HOLDER, DAMPER$33.99$27.87Usually ships in 7-10 business days
1990201-10149-00WASHER, PLATE$9.49$8.54Usually ships in 7-10 business days
2092990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
2195380-10700-00

(replaces part #
95303-10700-00)

NUT$6.49$5.0610+ In-Stock
2290468-12006-00CLIP$9.49$7.404 In-Stock
2391317-08025-00

(replaces part #
91316-08025-00)

BOLT$9.49$7.407 In-Stock
24341-23469-00-00CAP, BOLT$10.99$8.573 In-Stock
