1979 Yamaha SR500 Crankcase OEM Parts Diagram

Submodel SR500F - 1979

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

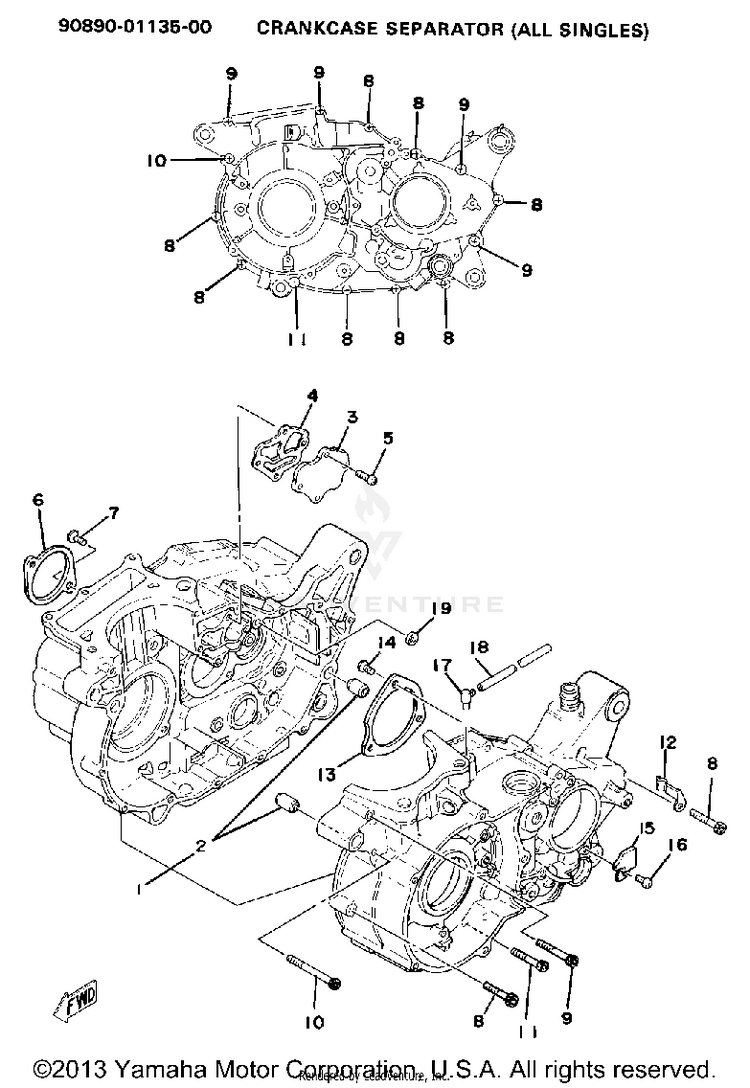

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12J2-15100-00-00CRANKCASE ASSEMBLY$265.99$227.96Not Shipping
299530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
3583-15426-10-00

(replaces part #
583-15426-00-00)

COVER, OIL PUMP 2$9.99$8.99Usually ships in 7-10 business days
43HT-15466-00-00

(replaces part #
583-15466-00-00)

GASKET 2$8.49$7.64Usually ships in 7-10 business days
597880-06018-00

(replaces part #
98580-06018-00)

SCREW, PAN HEAD$4.70$4.048 In-Stock
6583-15383-00-00PLATE, BEARING COVER$4.90$4.41Usually ships in 7-10 business days
798707-06014-00

(replaces part #
98701-06014-00)

SCREW, FLAT HEAD$9.49$7.4010+ In-Stock
891317-06035-00

(replaces part #
91316-06035-00)

BOLT, HEX. SOCKET HEAD | M6-35L$3.90$3.356 In-Stock
991317-06045-00

(replaces part #
91316-06045-00)

BOLT | M6-45L$5.49$4.2810+ In-Stock
1091317-06065-00

(replaces part #
91316-06065-00)

BOLT | M6-65L$4.05$3.4810+ In-Stock
1191317-06055-00

(replaces part #
91316-06055-00)

BOLT | M6-55L$4.50$3.8710+ In-Stock
1290465-08277-00CLAMP$12.49$9.742 In-Stock
13363-15381-00-00PLATE, BEARING COVER$5.64$5.08Not Shipping
1498707-05012-00

(replaces part #
98701-05012-00)

SCREW, COUNTERSUNK$1.85$1.8410+ In-Stock
1590465-05132-00CLAMP$0.85$0.76Usually ships in 7-10 business days
1697885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
17583-15371-00-00BREATHER$7.49$5.8410+ In-Stock
1890445-072G8-00

(replaces part #
90445-07039-00)

HOSE (L310)$32.99$25.734 In-Stock
1990430-09121-00GASKET$8.49$6.623 In-Stock
