1979 Yamaha SR500 Intake OEM Parts Diagram

Submodel SR500F - 1979

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

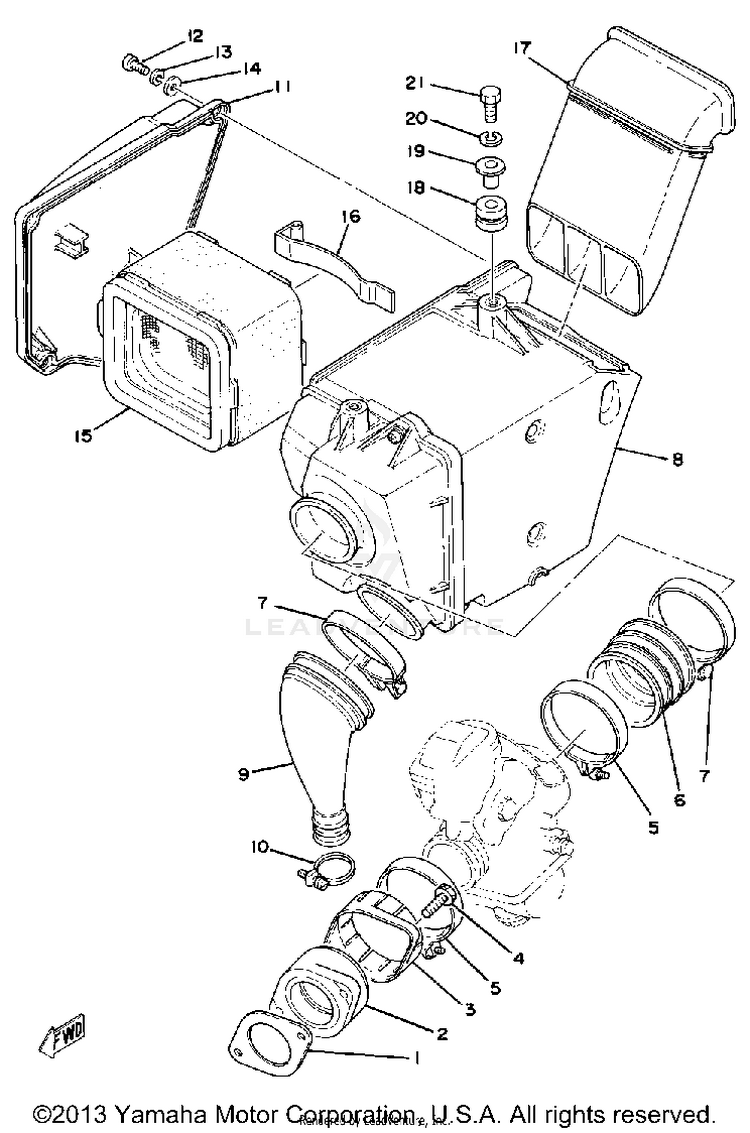

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13HT-13556-00-00

(replaces part #
583-13556-01-00)

GASKET, MANIFOLD$11.99$9.358 In-Stock
2583-13565-01-00JOINT, CARBURETOR$115.99$90.47Usually ships in 7-10 business days
3256-13564-00-00COVER, CARB.JOINT$17.99$14.75Usually ships in 7-10 business days
491317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
590450-58002-00

(replaces part #
90460-58015-00)

HOSE CLAMP ASSY$18.49$14.4210+ In-Stock
6583-14453-01-00

(replaces part #
583-14453-00-00)

JOINT, AIR CLEANER 1$9.49$8.54Usually ships in 7-10 business days
790450-62006-00

(replaces part #
90460-61063-00)

HOSE CLAMP ASSY$13.49$10.528 In-Stock
82J2-14401-00-00AIR CLNR CASE ASSEMBLY$225.99$176.27Usually ships in 7-10 business days
92J2-14463-00-00JOINT, AIR CLNR 2$16.49$13.52Not Shipping
1090460-22083-00CLAMP, HOSE$9.49$8.54Usually ships in 7-10 business days
112J2-14422-00-00CAP, CLEANER CASE 2$30.99$25.41Usually ships in 7-10 business days
1298580-05012-00SCREW, PAN HEAD$7.99$6.2310+ In-Stock
1392990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1492990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
152J2-14451-01-00

(replaces part #
2J2-14451-00-00)

ELEMENT,AIR CLNR$24.99$20.491 In-Stock
162J2-14468-00-00PLATE, ELEMENT FTNG$15.99$13.11Not Shipping
172J2-14437-00-00DUCT$6.04$5.44Usually ships in 7-10 business days
1890480-14023-00GROMMET$8.49$6.6210+ In-Stock
1990387-07391-00COLLAR$10.49$8.1810+ In-Stock
2092995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2197017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
