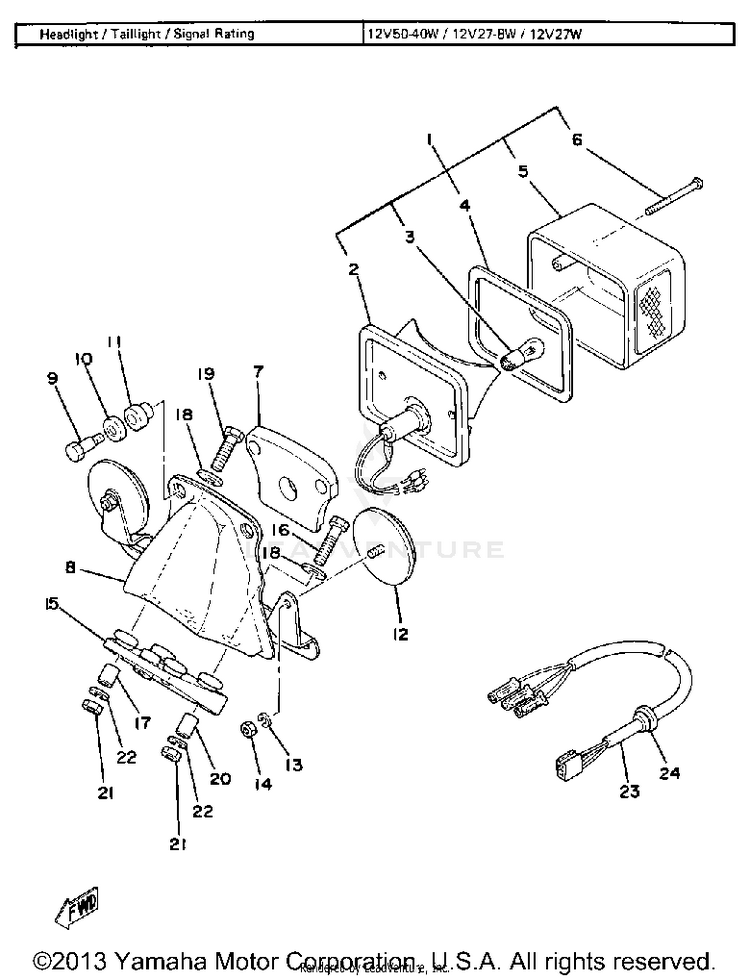

1979 Yamaha SR500 Tail Lamp OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1W9-84710-61-00 (replaces part # 1W9-84710-60-00)	TAILLIGHT UNIT ASSY	$119.99	$93.59	Usually ships in 7-10 business days
2	1W9-84710-61-00 (replaces part # 2J2-84711-60-00)	TAILLIGHT UNIT ASSY	$119.99	$93.59	Usually ships in 7-10 business days
3	256-84714-61-00	BULB (12V-27/8W)	$12.99	$10.13	10+ In-Stock
4	1M1-84523-60-00	GASKET, LENS	$14.49	$11.30	3 In-Stock
5	1M1-84521-60-00	LENS, TAILLIGHT	$43.99	$34.31	5 In-Stock
6	5BF-8433E-00-00 (replaces part # 1M1-84524-60-00)	SCREW, ADJUSTING	$8.49	$6.62	10+ In-Stock
7	1M1-84512-60-00	SEAT, BASE	$9.99	$8.99	Usually ships in 7-10 business days
8	2J2-84751-00-93	BRACKET, LICENSE	$65.88	$51.39	Usually ships in 7-10 business days
9	90109-06005-00 (replaces part # 1M1-84526-60-00)	BOLT	$8.49	$7.64	Usually ships in 7-10 business days
10	2H7-84754-00-00	WASHER, SPECIAL	$11.99	$9.83	Usually ships in 7-10 business days
11	1M1-84527-60-00	DAMPER	$9.49	$8.54	Usually ships in 7-10 business days
12	449-85131-02-00	REFLECTOR, REAR 1	$33.99	$26.51	4 In-Stock
13	92990-05100-00	WASHER, SPRING	-	$0.83	10+ In-Stock
14	95380-05600-00	NUT	$9.49	$8.54	Usually ships in 7-10 business days
15	2J2-84753-00-00	DAMPER	$17.99	$14.75	Usually ships in 7-10 business days
16	97017-06030-00 (replaces part # 97021-06030-00)	BOLT,HEXAGON	$3.90	$3.35	10+ In-Stock
17	90387-07020-00 (replaces part # 90387-07390-00)	COLLAR	$9.49	$7.40	10+ In-Stock
18	90201-06380-00 (replaces part # 90201-06067-00)	WASHER, PLATE	-	$0.71	10+ In-Stock
19	97017-06025-00 (replaces part # 97011-06025-00)	BOLT	$4.55	$3.91	10+ In-Stock
20	90387-061V1-00 (replaces part # 90387-074W0-00)	COLLAR (2UJ)	$9.49	$7.40	4 In-Stock
21	95380-06600-00	NUT, HEXAGON	$4.90	$4.60	5 In-Stock
22	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
23	3Y3-84517-00-00 (replaces part # 3Y1-84517-00-00)	CORD, TAILLIGHT	$16.49	$13.52	Usually ships in 7-10 business days
24	90480-12013-00	GROMMET	$9.49	$7.40	3 In-Stock
