1979 Yamaha SR500 Seat OEM Parts Diagram

Submodel SR500F - 1979

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

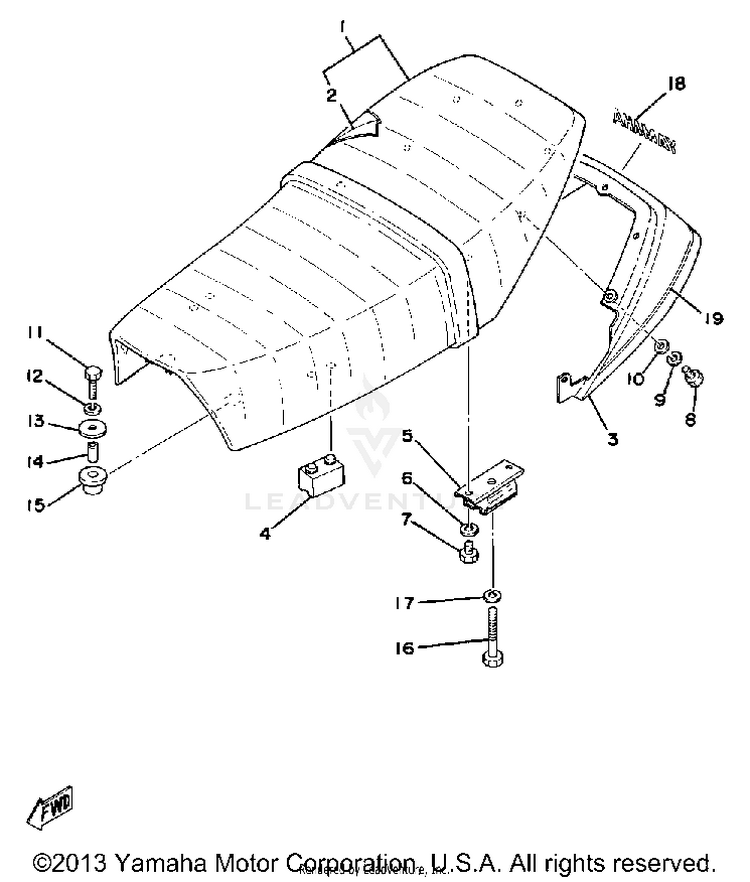

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-2J2-24756-00-E1COVER, TAIL | CHAPPY RED$53.99$42.11Not Shipping
12J2-W2472-01-00DOUBLE SEAT ASSEMBLY (2J2-24730$609.99$475.79Usually ships in 7-10 business days
22J2-24731-00-00COVER, DOUBLE SEAT$74.26$57.92Not Shipping
32J2-24756-00-6GCOVER, TAIL | BLACK GOLD$73.99$57.71Not Shipping
42J2-24723-00-00DAMPER, SEAT$23.99$19.67Usually ships in 7-10 business days
52J2-24724-01-00DAMPER, SEAT$65.99$51.47Usually ships in 7-10 business days
692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
797017-06010-00

(replaces part #
97011-06010-00)

BOLT(3JP)$4.05$3.4810+ In-Stock
897013-05012-00

(replaces part #
97313-05012-00)

BOLT$1.80$1.62Usually ships in 7-10 business days
992990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1092990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
1197017-06030-00

(replaces part #
97021-06030-00)

BOLT,HEXAGON$3.90$3.3510+ In-Stock
1292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1390201-06074-00

(replaces part #
90201-06075-00)

WASHER, PLATE$10.49$8.18Not Shipping
1436Y-83913-01-00

(replaces part #
90387-06554-00)

COLLAR, LEVER 1$10.99$8.577 In-Stock
152J2-24737-00-00DAMPER, SEAT$7.49$6.744 In-Stock
1690101-08439-00BOLT$9.49$8.546 In-Stock
1792990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1899245-00100-00

(replaces part #
99235-00025-00)

EMBLEM, YAMAHA$9.99$8.99Usually ships in 7-10 business days
192J2-24757-10-00GRAPHIC, TAIL COVER$3.96$3.56Usually ships in 7-10 business days
