1979 Yamaha SR500 Rear Disc Brake-Caliper OEM Parts Diagram

Submodel SR500F - 1979

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

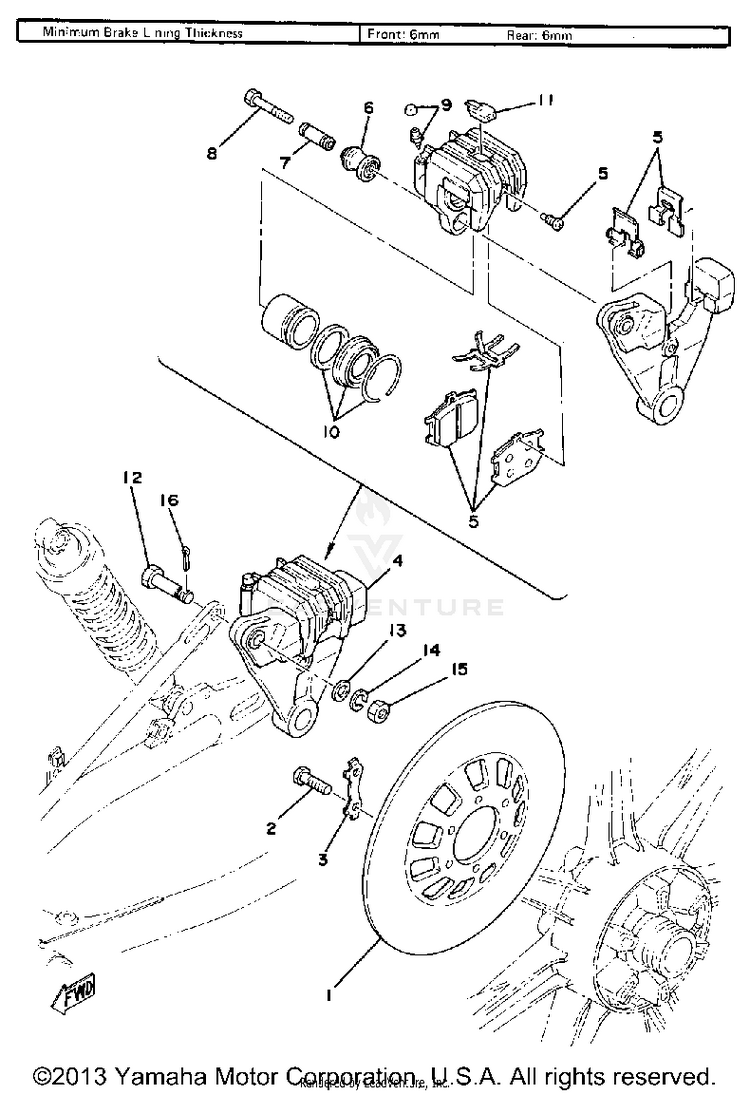

REAR DISC BRAKE-CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11L9-25831-00-00DISC, BRAKE$316.99$247.25Usually ships in 7-10 business days
290101-08312-00BOLT$10.49$8.60Usually ships in 7-10 business days
31J3-25834-01-00WASHER, LOCK$7.49$6.74Usually ships in 7-10 business days
42J2-25810-51-00CALIPER ASSEMBLY$200.99$156.77Usually ships in 7-10 business days
52J2-W0046-01-00BRAKE PAD KIT, REAR$25.99$21.31Not Shipping
61J3-25917-00-00BOOT, CALIPER$19.99$16.39Usually ships in 7-10 business days
71J3-25838-00-00SLEEVE, CALIPER$27.99$22.95Usually ships in 7-10 business days
890105-08145-00BOLT, WASHER BASED$8.99$8.09Usually ships in 7-10 business days
91J3-W0048-00-00BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
101J3-W0047-00-00CALIPER SEAL KIT$61.99$48.35Usually ships in 7-10 business days
111J3-25845-01-00CAP, INDICATOR$7.99$7.19Not Shipping
1290109-08499-00BOLT$2.80$2.52Not Shipping
1392990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
1492990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1590170-08158-00NUT, HEXAGON$2.50$2.158 In-Stock
1691490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
