1981 Yamaha IT250 Crankcase Cover OEM Parts Diagram

Submodel IT250H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE COVER

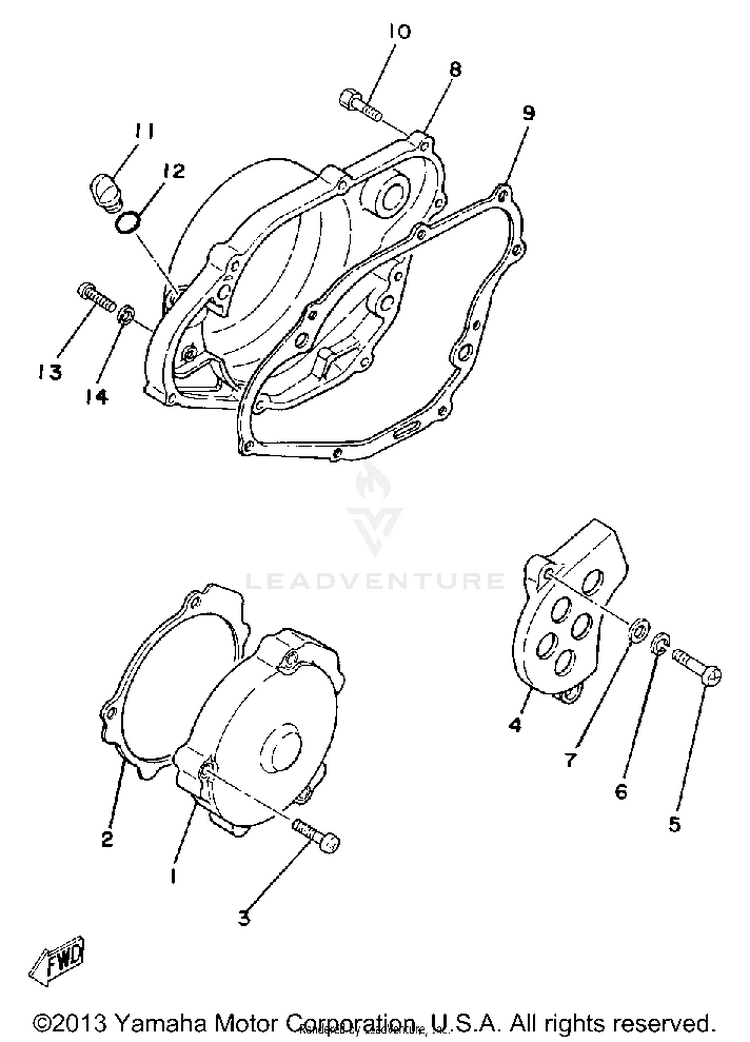

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14V5-15411-00-00COVER, CRANKCASE L$48.99$40.17Not Shipping
24V5-15451-00-00GASKET, CRCS COVER$16.99$13.25Not Shipping
398507-06035-00

(replaces part #
98506-06035-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
43R4-15421-00-00COVER, CRANKCASE R$48.99$40.17Not Shipping
598517-06025-00

(replaces part #
98506-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
692907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
792907-06600-00

(replaces part #
92906-06600-00)

WASHER, PLATE$1.00$0.9910+ In-Stock
83R4-15431-02-00COVER, CRANKCASE 3$354.99$276.89Not Shipping
93R4-15462-11-00

(replaces part #
3R4-15462-00-00)

GASKET, CRCS 3CRANKCASE COVER 3$37.99$32.636 In-Stock
1091317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
111G8-15362-00-00PLUG, OIL LEVEL$17.49$13.64Not Shipping
1293210-14579-00

(replaces part #
93210-14104-00)

O-RING$7.99$6.238 In-Stock
1398517-06008-00

(replaces part #
98506-06008-00)

SCREW$9.49$7.404 In-Stock
1490430-06016-00GASKET$9.49$7.406 In-Stock
