1981 Yamaha IT250 Exhaust OEM Parts Diagram

Submodel IT250H - 1981

Shop Aftermarket Parts

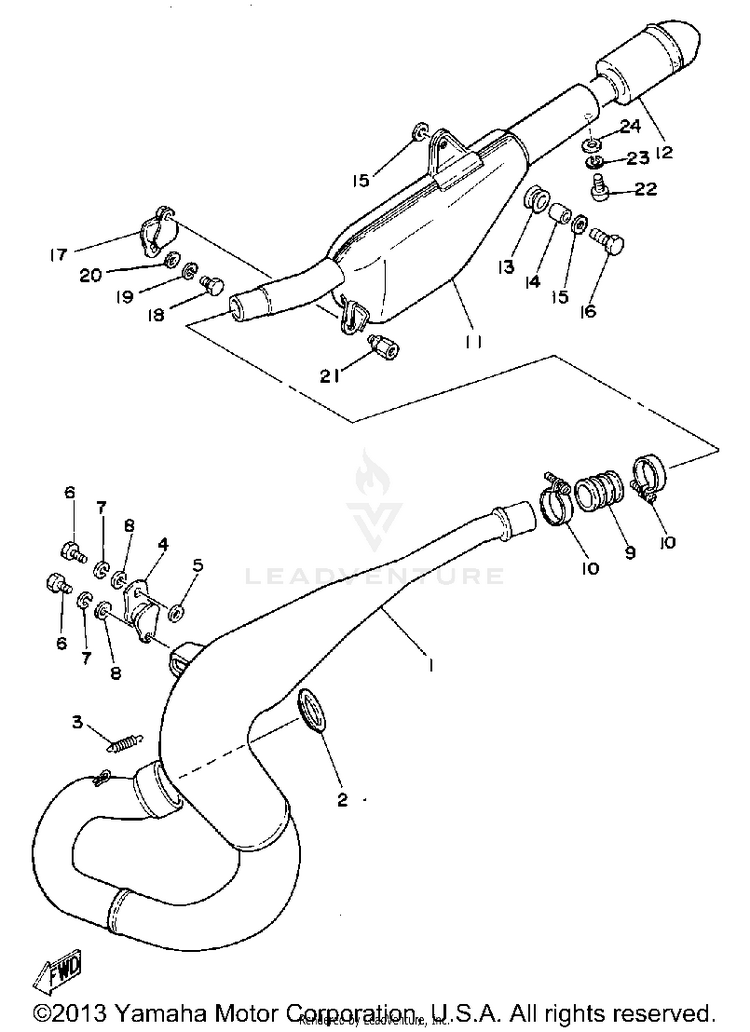

EXHAUST

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14V5-14610-00-00EXHAUST PIPE ASSEMBLY L$294.99$230.09Not Shipping
23R4-14613-00-00GASKET, EXHAUST PIPE$34.99$27.2910+ In-Stock
390507-20030-00SPRING, TENSION$16.49$12.8610+ In-Stock
43R4-14781-04-00

(replaces part #
3R4-14781-03-00)

STAY, MUFFLER 2$38.99$30.412 In-Stock
592990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
690101-08691-00

(replaces part #
97313-08018-00)

BOLT, HEX-$5.0410+ In-Stock
792990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
892990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
91M1-14714-00-00GASKET, MUFFLER$80.99$63.172 In-Stock
1090460-43179-00

(replaces part #
90460-43053-00)

CLAMP, HOSE$21.99$17.1510+ In-Stock
114V5-14753-00-00SILENCER, EXHAUST$189.99$148.19Not Shipping
124V5-14752-00-00PIPE, OUTLET$62.99$49.13Not Shipping
13565-14747-00-00DAMPER, MUFFLER$9.49$7.4010+ In-Stock
1490387-08258-00COLLAR$11.49$8.966 In-Stock
1590201-085E6-00WASHER PLATE (156-24186-00)$11.49$8.968 In-Stock
1690109-08512-00BOLT$12.49$9.743 In-Stock
17565-14771-01-00

(replaces part #
565-14771-00-00)

STAY, MUFFLER 1$19.99$15.5910+ In-Stock
1897D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2092990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
2190109-06551-00BOLT$23.99$18.7110+ In-Stock
2297885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
2392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2492990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
