1981 Yamaha IT250 Crankcase OEM Parts Diagram

Submodel IT250H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

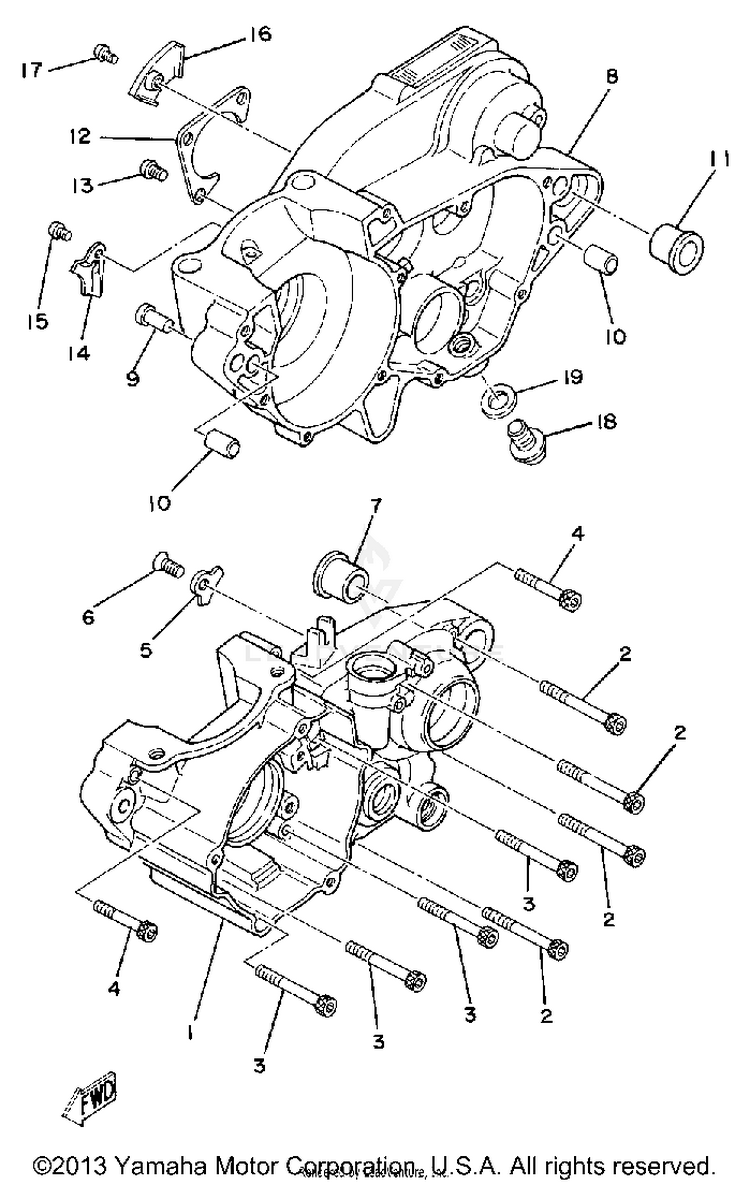

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
199999-01383-00CRANKCASE 1$194.99$152.09Not Shipping
291317-06060-00

(replaces part #
91316-06060-00)

BOLT$4.05$3.4810+ In-Stock
391317-06055-00

(replaces part #
91316-06055-00)

BOLT$4.50$3.8710+ In-Stock
491317-06040-00

(replaces part #
91316-06040-00)

BOLT, HEX. SOCKET HEAD$4.05$3.4810+ In-Stock
53AK-15383-01-00PLATE, BEARING COVER$9.49$8.54Usually ships in 7-10 business days
698603-06012-00SCREW, OVAL HEAD (92701-06012)$1.85$1.66Not Shipping
790387-16776-00COLLAR$10.49$8.60Not Shipping
83R4-15121-02-00

(replaces part #
3R4-W1512-01-00)

CRANKCASE 2$286.99$223.85Usually ships in 7-10 business days
990338-07124-00

(replaces part #
90338-07011-00)

PLUG$11.49$8.963 In-Stock
1099530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
1190387-16776-00COLLAR$10.49$8.60Not Shipping
123R4-15381-00-00PLATE, BEARING COVER$5.49$4.94Usually ships in 7-10 business days
1397885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
143R4-15118-00-00HOLDER-$3.74Not Shipping
1598507-08010-00

(replaces part #
92501-08010-00)

SCREW, PAN HEAD$9.49$7.406 In-Stock
163R4-15113-00-00PLATE$11.49$9.42Not Shipping
1797885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1890340-12097-00PLUG, STRAIGHT SCREW$3.35$2.8810+ In-Stock
1990430-12207-00GASKET$8.49$6.6210+ In-Stock
