1981 Yamaha IT250 Shift Shaft - Pedal OEM Parts Diagram

Submodel IT250H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT - PEDAL

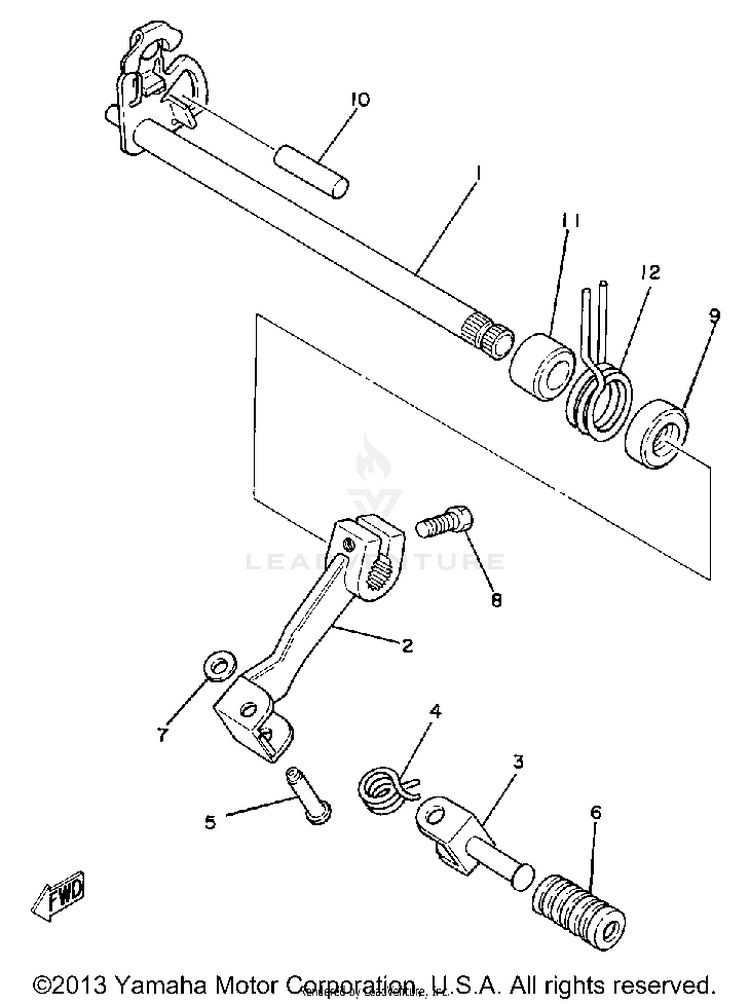

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
138W-18101-02-00

(replaces part #
23X-18101-01-00)

SHIFT SHAFT ASSY$62.99$49.131 In-Stock
25X6-18110-00-00PEDAL, SHIFT$74.99$58.49Not Shipping
33R8-18162-00-00PEDAL, SHIFT$9.99$8.99Not Shipping
490508-20415-00SPRING, TORSION$2.45$2.20Not Shipping
590243-08019-00PIN (90243-08017)$4.15$3.74Not Shipping
61W6-18113-00-00COVER, SHIFT PEDAL$5.99$4.676 In-Stock
790201-06042-00WASHER, PLATE$10.49$8.185 In-Stock
897017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
993102-12321-00OIL SEAL (SD 12-22-5 HS)$13.49$10.5210+ In-Stock
1093608-25150-00PIN, DOWEL$2.50$2.25Not Shipping
1190560-12171-00SPACER$6.49$5.06Not Shipping
1290508-32374-00SPRING, TORSION$8.49$6.6210+ In-Stock
