1981 Yamaha IT250 Front Wheel OEM Parts Diagram

Submodel IT250H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

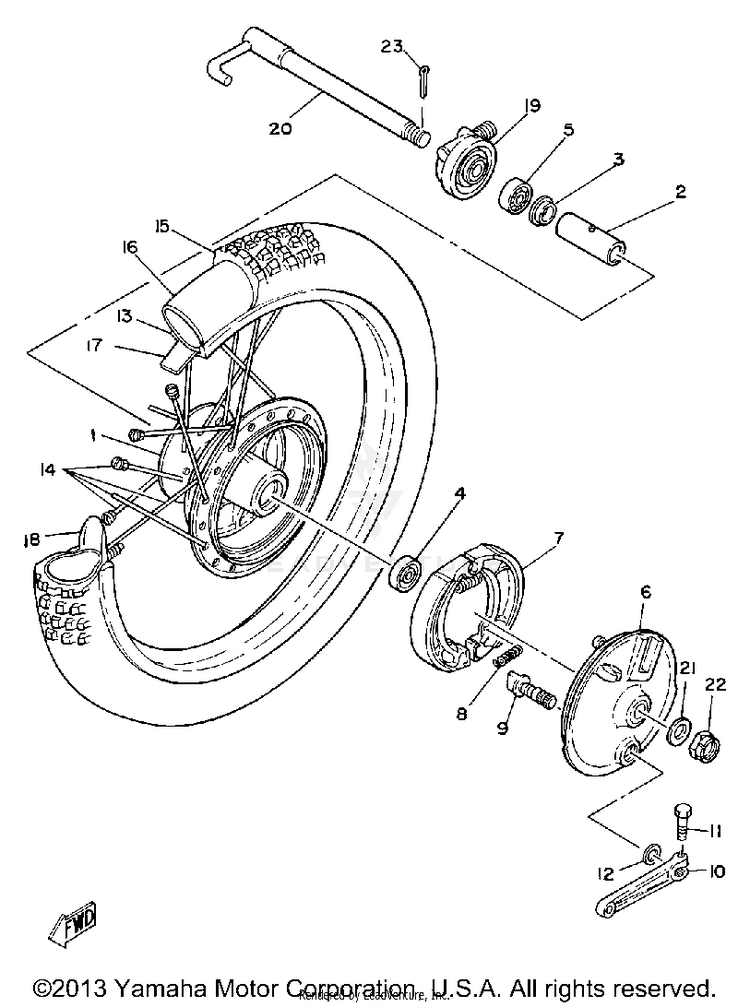

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11K7-25111-10-98HUB, FRONT | LOW GLOSS BLK$132.99$103.73Not Shipping
290560-15116-00SPACER$13.99$11.47Not Shipping
3146-25116-00-00FLANGE, SPACER 2$9.99$7.793 In-Stock
493306-20226-00BEARING$42.99$33.534 In-Stock
593306-20205-00

(replaces part #
93306-20209-00)

BEARING$42.99$33.5310+ In-Stock
61W1-25016-11-98BRAKE SHOE PLT ASSEMBLY (1W1-25 | LOW GLOSS BLK$285.99$223.07Usually ships in 7-10 business days
7322-W253A-10-00

(replaces part #
322-W2535-00-00)

BRAKE SHOE KIT$31.99$24.9510+ In-Stock
890506-17328-00SPRING, TENSION$11.49$8.9610+ In-Stock
924X-25151-00-00CAMSHAFT$15.99$13.11Not Shipping
10322-25155-00-00LEVER, CAMSHAFT 1$29.99$24.59Not Shipping
1190101-06291-00BOLT$9.49$7.403 In-Stock
12137-25159-00-00SEAL, CAMSHAFT$3.75$3.38Not Shipping
1394416-21234-00RIM 1.60X21$225.99$176.27Not Shipping
142W6-25104-02-00SPOKE SET, FRONT$153.99$120.11Not Shipping
1594130-21654-00300-21 MARK 2 (TT)$62.78$53.82Not Shipping
1694230-21126-00TUBE$6.99$6.29Not Shipping
1794330-21088-00BAND, RIM$3.16$2.84Not Shipping
185X2-25394-00-00SPACER, BEAD$43.99$36.294 In-Stock
193XP-25190-00-00

(replaces part #
1W2-25190-00-00)

GEAR UNIT ASSEMBLY$104.99$81.89Usually ships in 7-10 business days
2099999-01618-00AXLE, WHEEL$26.99$22.13Usually ships in 7-10 business days
2190201-15785-00WASHER, PLATE$9.49$7.402 In-Stock
2290171-14056-00

(replaces part #
90171-14020-00)

NUT, CASTLE$14.49$11.3010+ In-Stock
2391490-30030-00

(replaces part #
91401-30030-00)

PIN, COTTER$8.49$6.6210+ In-Stock
