1981 Yamaha TT500 Crankcase Cover OEM Parts Diagram

Submodel TT500H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE COVER

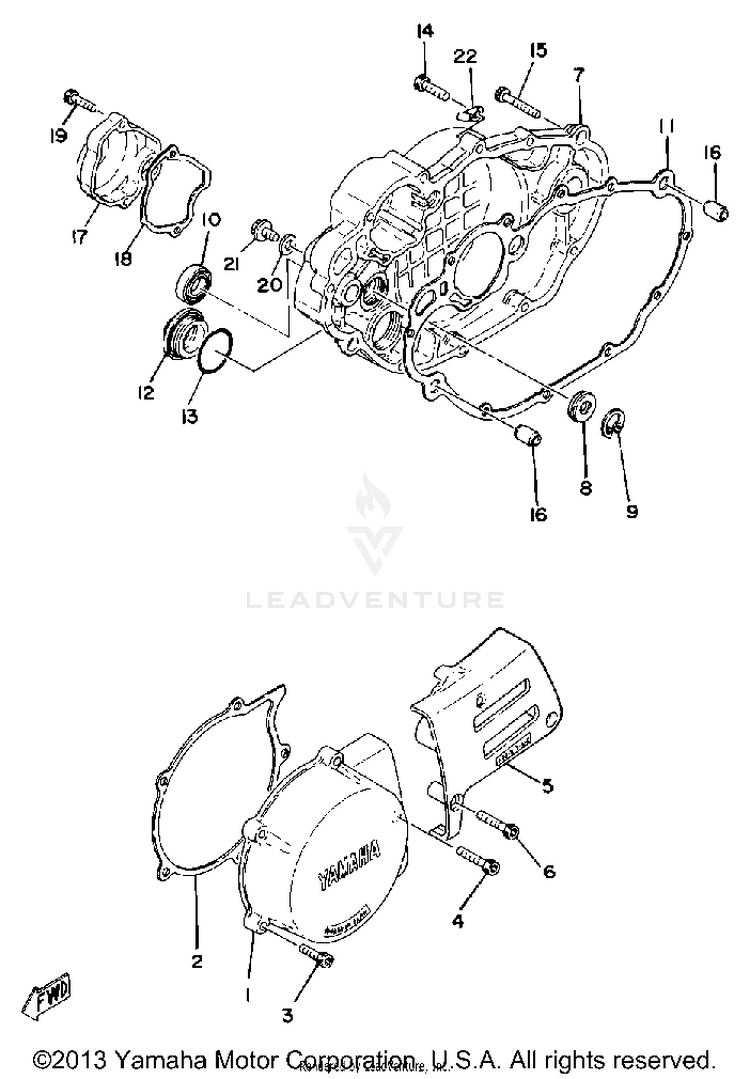

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1583-15411-00-00COVER, CRANKCASE L$148.99$116.21Usually ships in 7-10 business days
23HT-15451-00-00GASKET, CRCS COVER$26.99$21.055 In-Stock
391317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
491317-06035-00

(replaces part #
91316-06035-00)

BOLT, HEX. SOCKET HEAD$3.90$3.356 In-Stock
5583-15421-00-00COVER, CRANKCASE R$108.99$90.44Not Shipping
691317-06035-00

(replaces part #
91316-06035-00)

BOLT, HEX. SOCKET HEAD$3.90$3.356 In-Stock
7583-W1542-00-00COVER, CRANKCASE 3 (583-15431-0$369.99$288.59Usually ships in 7-10 business days
893101-14089-00OIL SEAL$13.49$10.524 In-Stock
999009-25500-00CIRCLIP$8.49$7.64Usually ships in 7-10 business days
1093102-15147-00OIL SEAL$11.49$8.962 In-Stock
113HT-15462-R1-00

(replaces part #
3HT-15462-00-00)

CRANKCASE COVER 3 GASKET$24.99$19.491 In-Stock
12583-15425-00-00COVER, GENERATOR R$28.99$23.77Not Shipping
1393210-34474-00O-RING$6.49$5.063 In-Stock
1490110-06138-00BOLT$6.49$5.0610+ In-Stock
1591317-06040-00

(replaces part #
91316-06040-00)

BOLT, HEX. SOCKET HEAD$4.05$3.4810+ In-Stock
1699530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
17583-15417-00-00COVER, CAP$35.99$29.51Not Shipping
183HT-15457-00-00

(replaces part #
583-15457-00-00)

GASKET$30.99$24.172 In-Stock
1991317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
2090430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
2190340-10003-00PLUG, STRAIGHT SCREW$9.49$7.404 In-Stock
2290465-08076-00CLAMP$9.49$8.54Not Shipping
