1981 Yamaha TT500 Electrical 1 OEM Parts Diagram

Submodel TT500H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

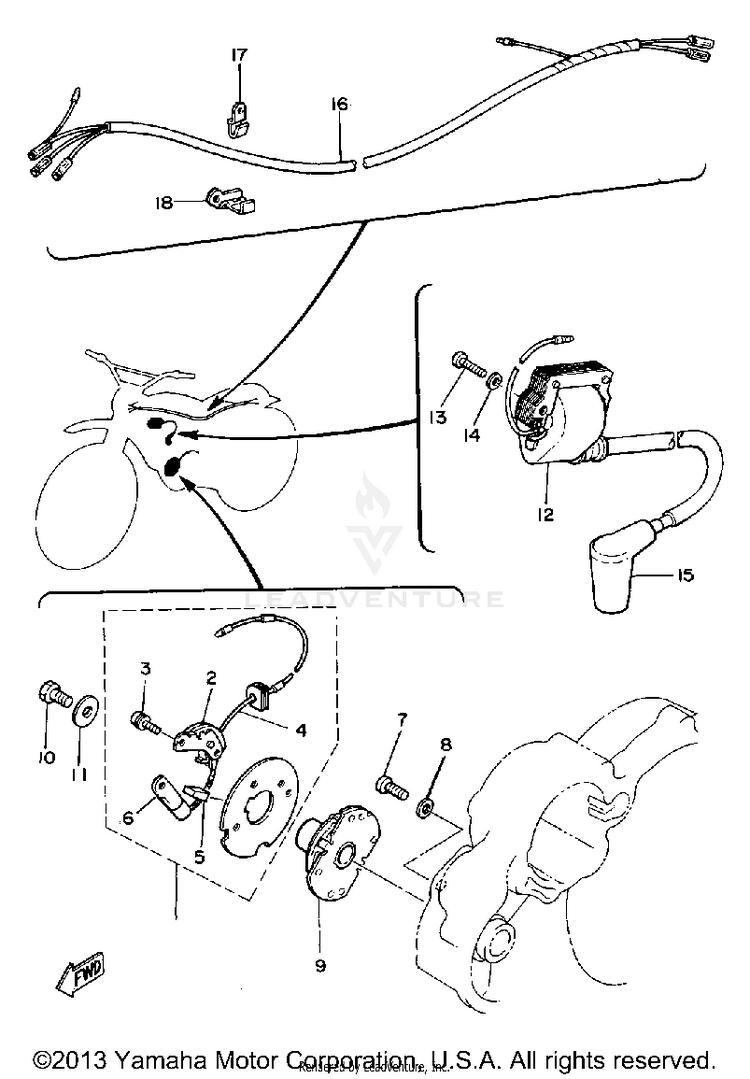

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-7KA-82370-00-00

(replaces part #
512-82370-10-00)

PLUG CAP ASY | U.R.$73.99$57.71Usually ships in 7-10 business days
1583-81620-50-00BREAKER PLATE ASSEMBLY$221.99$173.15Usually ships in 7-10 business days
2583-81621-50-00CONTACT BRKR ASSEMBLY$90.99$70.97Usually ships in 7-10 business days
398580-04006-00SCREW, PAN HEAD$3.30$2.845 In-Stock
4583-81615-50-00WIRE, LEAD$49.99$40.99Not Shipping
51L9-81631-50-00LUBRICATOR$6.49$5.84Not Shipping
6583-81625-50-00CONDENSER 1$48.99$40.17Usually ships in 7-10 business days
798507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
892990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
9583-81653-50-00GOVERNOR ASSEMBLY$293.99$229.31Usually ships in 7-10 business days
1097D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1190201-06020-00

(replaces part #
90201-065F3-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
12583-82310-50-00IGNITION COIL ASSEMBLY$185.99$145.07Not Shipping
1398517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
1492990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
1556J-82370-00-00PLUG CAP ASSY | U.R.$70.99$55.372 In-Stock
162Y0-82590-00-00WIRE HARNESS ASSEMBLY$20.32$16.66Not Shipping
1790465-06086-00CLAMP$0.72$0.65Usually ships in 7-10 business days
1890465-10090-00CLAMP$7.49$6.74Not Shipping
