1981 Yamaha TT500 Handlebar-Cable OEM Parts Diagram

Submodel TT500H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR-CABLE

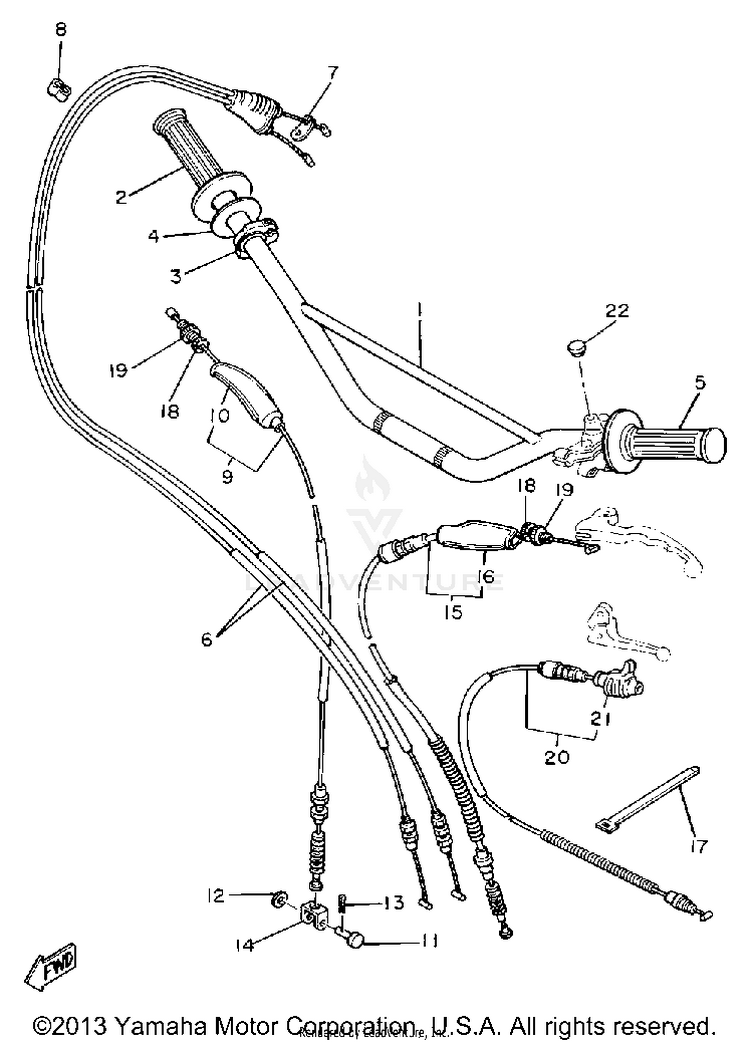

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12A8-26111-00-00HANDLEBAR$140.99$109.972 In-Stock
2583-26242-00-00GRIP RH (R.H.)$39.99$31.194 In-Stock
32H0-26243-00-00TUBE, THRTL GUIDE$31.99$26.23Usually ships in 7-10 business days
41W1-26249-00-00RING, LEAF$6.99$6.29Not Shipping
51E6-26241-00-00GRIP LH$37.99$29.633 In-Stock
6583-26301-01-00

(replaces part #
583-26301-00-00)

THROTTLE CABLE ASSY$79.99$62.39Usually ships in 7-10 business days
7583-26398-00-00WASHER$2.85$2.56Usually ships in 7-10 business days
890468-15009-00CLIP$8.49$7.64Usually ships in 7-10 business days
91W1-26341-01-00CABLE, BRAKE$18.26$14.97Not Shipping
10498-26372-00-00

(replaces part #
382-26372-01-00)

COVER, HANDLE LEVER 1$34.99$27.296 In-Stock
1190240-08013-00PIN, CLEVIS$9.49$7.401 In-Stock
1290201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
1391490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
14156-26347-00-00JOINT, CABLE$9.49$7.401 In-Stock
15583-26335-01-00CABLE, CLUTCH (1100MM)$41.99$34.43Not Shipping
16498-26372-00-00

(replaces part #
382-26372-01-00)

COVER, HANDLE LEVER 1$34.99$27.296 In-Stock
17341-26397-01-00BAND$12.49$10.24Usually ships in 7-10 business days
1890123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1990179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
20583-26331-00-00CABLE, STARTER 1 (800MM)$24.95$20.46Not Shipping
21583-26352-00-00COVER, DECOMPRESSION CABLE$23.99$18.713 In-Stock
2290338-09012-00PLUG$10.49$8.186 In-Stock
