1981 Yamaha TT500 Steering OEM Parts Diagram

Submodel TT500H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

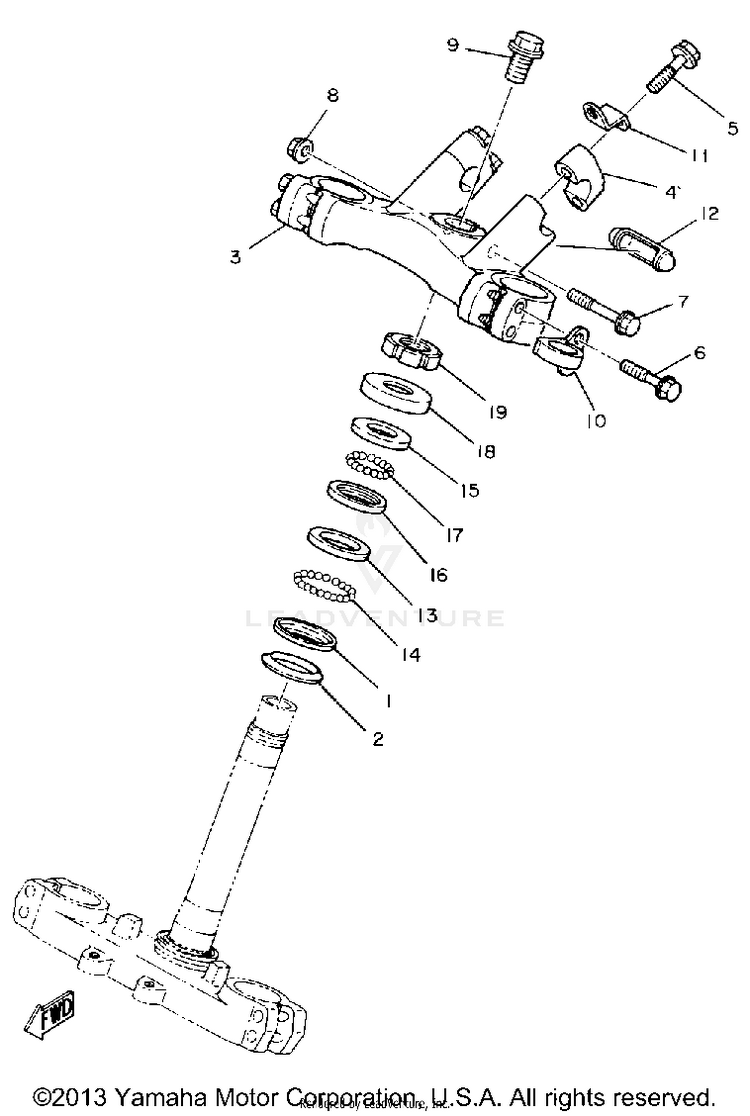

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B6E-23411-00-00

(replaces part #
156-23411-00-00)

. .RACE, BALL 1$9.49$7.406 In-Stock
2164-23462-00-00SEAL, STEERING$8.49$6.628 In-Stock
35X3-23435-01-98CROWN, HANDLE | LOW GLOSS BLK$129.99$101.39Not Shipping
41E6-23441-00-00HOLDER, HANDLE UPR (1E6-23441-0 | LOW GLOSS BLK$30.99$24.1710+ In-Stock
595817-08035-00

(replaces part #
95811-08035-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
695814-08040-00

(replaces part #
90105-08091-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
795817-08055-00

(replaces part #
95811-08055-00)

BOLT, FLANGE$4.21$3.6210+ In-Stock
895704-08500-00

(replaces part #
95701-08500-00)

NUT, FLANGE$9.49$7.4010+ In-Stock
990105-14220-00

(replaces part #
90105-14136-00)

BOLT, FLANGE$5.49$4.285 In-Stock
103R4-23317-00-00HOLDER, CABLE$38.99$30.416 In-Stock
111T2-23389-00-00GUIDE, CABLE$4.20$3.78Usually ships in 7-10 business days
12583-23469-00-00CAP, BOLT$33.99$27.87Usually ships in 7-10 business days
13B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
1493501-04011-00BALL$9.49$7.4010+ In-Stock
15BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
16BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
1793503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
182Y0-23416-00-00COVER, BALL RACE 2$7.10$6.39Not Shipping
1990179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
