1981 Yamaha TT500 Front Fender-Rear Fender OEM Parts Diagram

Submodel TT500H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FENDER-REAR FENDER

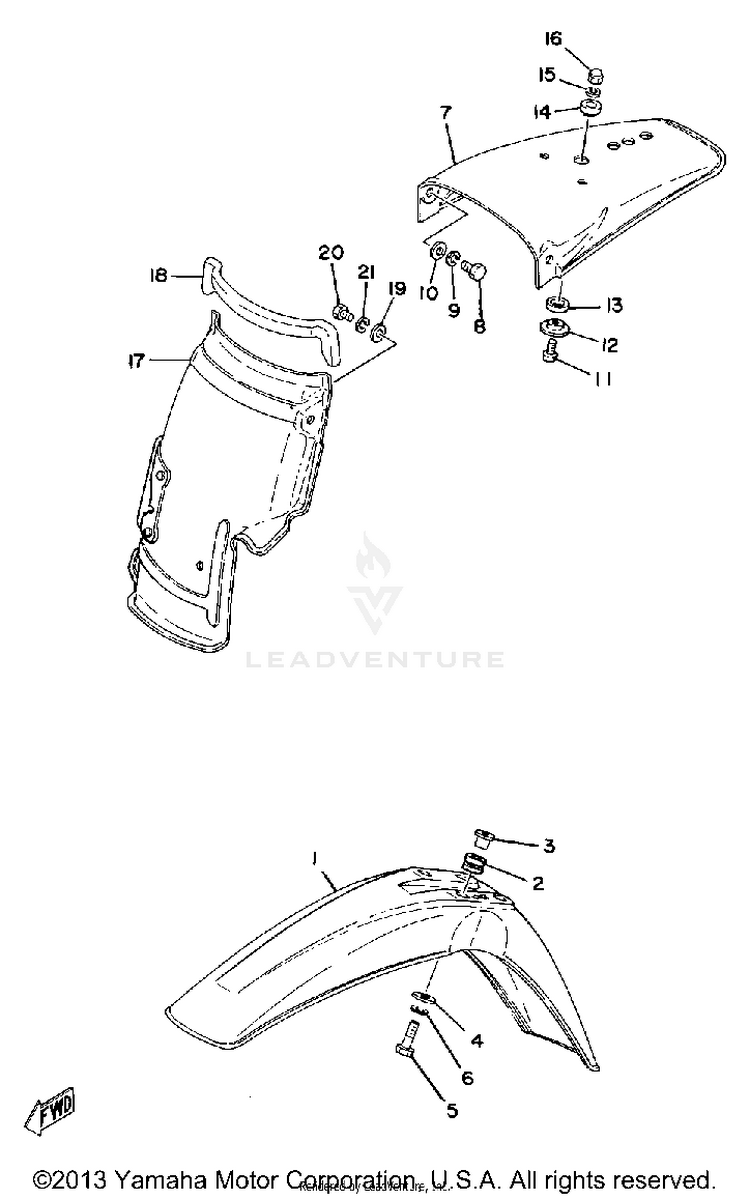

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13H6-21511-00-00FENDER, FRONT | CLEAN WHITE$86.99$69.17Usually ships in 7-10 business days
290480-14198-00GROMMET$10.49$8.1810+ In-Stock
390387-06158-00

(replaces part #
90387-06388-00)

COLLAR$9.49$7.4010+ In-Stock
490201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
597017-06030-00

(replaces part #
97021-06030-00)

BOLT,HEXAGON$3.90$3.3510+ In-Stock
692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
7583-21611-00-36FENDER, REAR | CLEAN WHITE$45.99$37.71Not Shipping
897D95-06016-00

(replaces part #
97011-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1090201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1197880-06018-00

(replaces part #
98580-06018-00)

SCREW, PAN HEAD$4.70$4.048 In-Stock
1290209-06087-00WASHER, SPECIAL SHAPE$3.70$3.33Not Shipping
13322-21639-00-00DAMPER 2$2.17$1.95Not Shipping
14322-21541-00-00DAMPER 1$8.49$6.628 In-Stock
1592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1695380-06800-00

(replaces part #
95303-06800-00)

NUT, CROWN$9.49$7.4010+ In-Stock
171T1-21620-00-00GUARD, MUD$78.99$61.61Usually ships in 7-10 business days
18583-21746-00-00DAMPER$26.99$22.13Not Shipping
1990201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
2097D95-06016-00

(replaces part #
97011-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
2192995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
