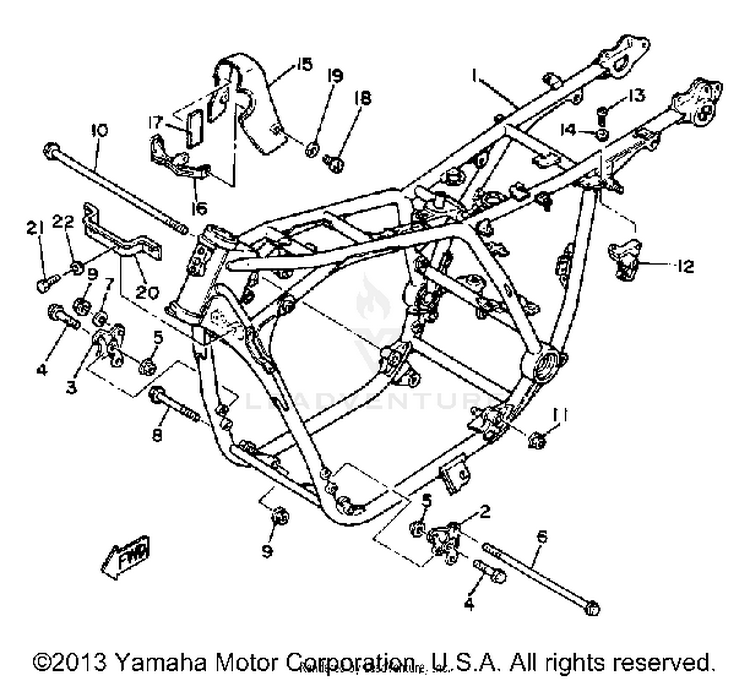

1981 Yamaha XS1100 Frame OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	4W1-21110-00-98	FRAME \| LOW GLOSS BLK	$936.99	$733.74	Usually ships in 7-10 business days
2	3H3-21315-00-00	STAY, ENGINE 2	$14.49	$11.88	Usually ships in 7-10 business days
3	3H3-21316-00-00	STAY, ENGINE 3	$6.04	$5.44	Usually ships in 7-10 business days
4	90105-08107-00	BOLT, WASHER BASED	$4.40	$3.96	Not Shipping
5	90179-08491-00 (replaces part # 90179-08246-00)	NUT	$2.80	$2.41	10+ In-Stock
6	90105-10056-00	BOLT, WASHER BASED \| 1	$20.99	$17.21	Usually ships in 7-10 business days
7	92990-10100-00	WASHER, SPRING	$3.25	$2.80	6 In-Stock
8	90105-10105-00	BOLT, FLANGE	$13.49	$10.52	4 In-Stock
9	90179-10658-00 (replaces part # 90179-10247-00)	NUT	$10.49	$8.18	10+ In-Stock
10	90105-12047-00 (replaces part # 90105-12106-00)	BOLT, FLANGE	$28.99	$23.77	Usually ships in 7-10 business days
11	90179-12657-00 (replaces part # 90179-12421-00)	NUT	$6.49	$5.06	10+ In-Stock
12	2H7-21308-00-00	HELMET HANGER ASSEMBLY	$52.99	$41.33	Usually ships in 7-10 business days
13	97885-06012-00 (replaces part # 98580-06012-00)	SCREW, PAN HEAD	$3.45	$2.97	10+ In-Stock
14	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
15	3H3-2139R-00-00	COVER 2	$40.99	$33.61	Usually ships in 7-10 business days
16	4R0-2139T-00-00	BRACKET, COVER	$6.86	$6.17	Usually ships in 7-10 business days
17	3H3-2139U-00-00	DAMPER 2	$1.98	$1.78	Usually ships in 7-10 business days
18	98517-05012-00 (replaces part # 98516-05012-00)	SCREW, PAN HEAD	$5.49	$4.28	3 In-Stock
19	92907-05200-00 (replaces part # 92906-05200-00)	WASHER	$4.80	$4.13	10+ In-Stock
20	3J6-2134Y-01-00	STAY, HORN	$19.42	$15.92	Usually ships in 7-10 business days
21	97017-08016-00 (replaces part # 97016-08016-00)	BOLT	$9.49	$7.40	8 In-Stock
22	92907-08100-00 (replaces part # 92906-08100-00)	WASHER, SPRING	$9.49	$7.40	10+ In-Stock
