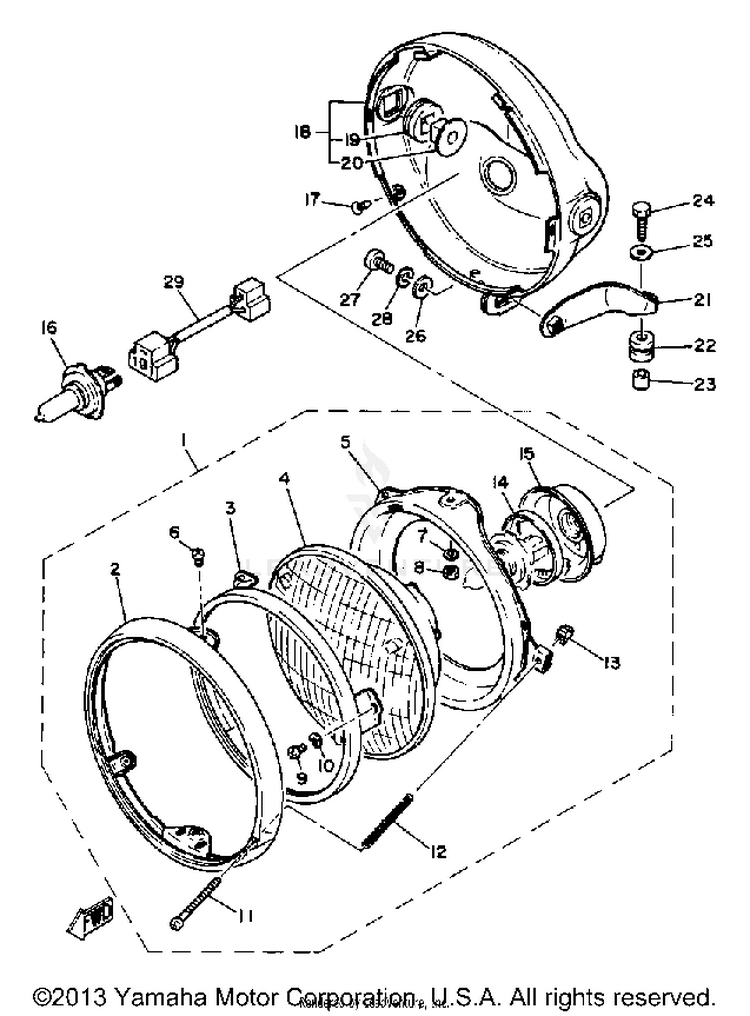

1981 Yamaha XS1100 Headlight OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2F3-84303-A0-00	HEADLIGHT UNIT ASSEMBLY	$172.99	$137.06	Usually ships in 7-10 business days
2	341-84315-40-00	RIM, HEADLIGHT	$154.99	$120.89	Usually ships in 7-10 business days
3	2F9-84395-00-00	RING, RETAINING	$63.99	$49.91	Usually ships in 7-10 business days
4	2F3-84321-A0-00	LENS, HEADLIGHT	$74.99	$58.49	Usually ships in 7-10 business days
5	2F9-84394-00-00	RING, MOUNTING	$26.99	$22.13	Usually ships in 7-10 business days
6	97885-05010-00 (replaces part # 98580-05010-00)	SCREW, PAN HEAD	$3.15	$2.71	5 In-Stock
7	92990-05100-00	WASHER, SPRING	-	$0.83	10+ In-Stock
8	95380-05600-00	NUT	$9.49	$8.54	Usually ships in 7-10 business days
9	98580-04008-00	SCREW, PAN HEAD	$6.49	$5.06	10+ In-Stock
10	92990-04100-00 (replaces part # 92901-04100-00)	WASHER, SPRING	-	$1.02	10+ In-Stock
11	98580-04055-00	SCREW, LENS FITTING	$10.49	$8.18	4 In-Stock
12	341-84332-60-00	SPRING, SCREW	$10.99	$8.57	6 In-Stock
13	198-84334-60-00	NUT, ADJUSTING	$8.49	$6.62	5 In-Stock
14	2F9-84375-00-00	SETTING PLATE, BULB	$14.99	$12.29	Usually ships in 7-10 business days
15	2F9-84397-01-00	COVER, SOCKET	$33.99	$27.87	Usually ships in 7-10 business days
16	8V0-84314-10-00 (replaces part # 5V2-84314-00-XX)	BULB, HEADLIGHT (12V-60/55W)	$75.99	$60.93	Usually ships in 7-10 business days
17	90152-05005-00	SCREW, COUNTERSUNK	$4.65	$4.00	2 In-Stock
18	3J6-84330-00-93	BODY ASSEMBLY \| CHROME PLATED	$104.99	$81.89	Usually ships in 7-10 business days
19	584-84345-60-00	DAMPER, HEADLIGHT	$10.99	$9.01	Usually ships in 7-10 business days
20	584-84338-60-00	COLLAR, BODY FITTING	$23.99	$19.67	Usually ships in 7-10 business days
21	3H3-84318-00-00	STAY, HEADLIGHT 1	$10.20	$8.36	Usually ships in 7-10 business days
22	90480-16114-00	GROMMET	$8.49	$7.64	Usually ships in 7-10 business days
23	90387-07598-00	COLLAR	$6.49	$5.06	10+ In-Stock
24	97017-06025-00 (replaces part # 97011-06025-00)	BOLT	$4.55	$3.91	10+ In-Stock
25	90201-06697-00	WASHER, PLATE	$9.49	$7.40	9 In-Stock
26	90201-06380-00 (replaces part # 90201-06067-00)	WASHER, PLATE	-	$0.71	10+ In-Stock
27	98507-06014-00 (replaces part # 98503-06014-00)	SCREW, PAN HEAD	$9.49	$7.40	10+ In-Stock
28	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
29	2H7-84359-00-00	CORD, HEADLIGHT	$10.41	$8.54	Usually ships in 7-10 business days
