1981 Yamaha XS1100 Front Master Cylinder OEM Parts Diagram

Submodel XS1100SH - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

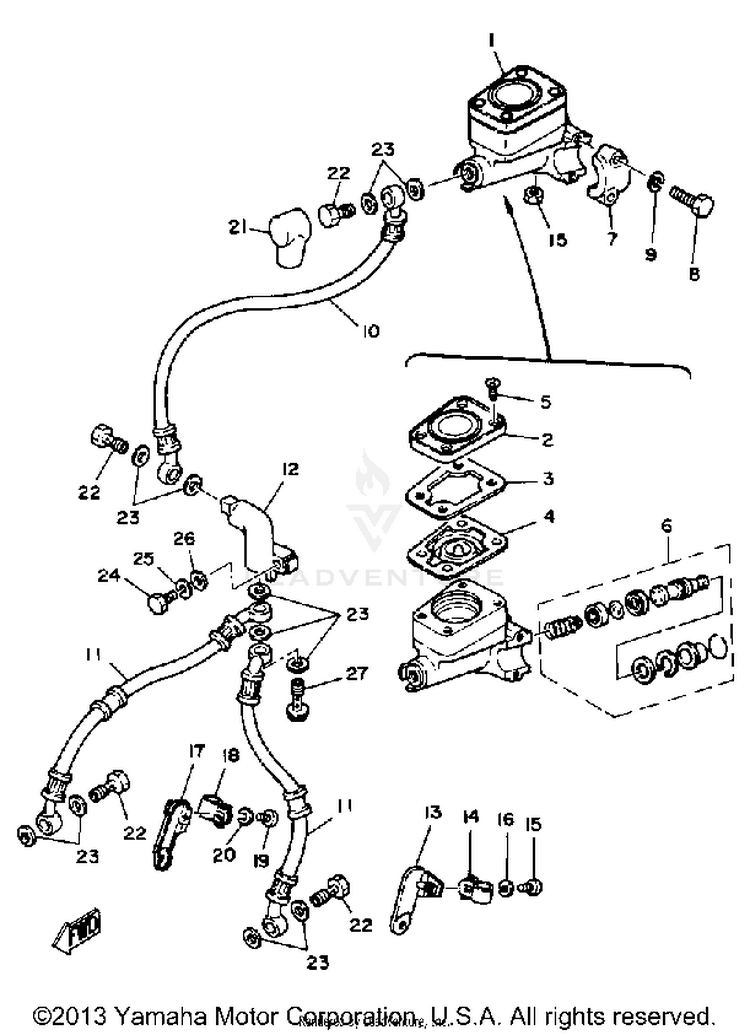

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13J6-25850-00-00MSTR CYLINDER ASSEMBLY$175.99$137.27Usually ships in 7-10 business days
21J3-25852-01-00RESERVOIR CAP ASSY$50.99$39.77Not Shipping
31J3-25855-01-00GASKET$15.49$12.70Not Shipping
41J3-25854-01-00DIAPHRAM, RESERVOIR$44.99$36.89Usually ships in 7-10 business days
598706-05040-00SCREW, FLAT HEAD$2.39$2.15Usually ships in 7-10 business days
61J3-W0041-20-00CYLINDER KIT, MASTER$153.99$120.11Usually ships in 7-10 business days
71J3-25867-00-00BRACKET, MASTER$22.99$18.85Not Shipping
897017-06025-00

(replaces part #
97016-06025-00)

BOLT$4.55$3.9110+ In-Stock
992907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
102G2-25872-01-00HOSE, BRAKE 1$92.99$72.53Not Shipping
113H3-25873-00-00HOSE, BRAKE 2$38.92$31.91Usually ships in 7-10 business days
121J7-25885-01-00JOINT$64.99$50.69Usually ships in 7-10 business days
132H7-25875-00-00HOLDER, BRKE HOSE 1$7.78$7.00Not Shipping
1490461-08031-00CLAMP$9.49$8.54Usually ships in 7-10 business days
1598517-06012-00

(replaces part #
98516-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
1692907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
172H7-25876-00-00HOLDER, BRKE HOSE 2$5.99$5.39Not Shipping
1890461-08031-00CLAMP$9.49$8.54Usually ships in 7-10 business days
1998517-06012-00

(replaces part #
98516-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
2092907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
21306-25862-00-00BOOT, MASTER CYLINDER$52.99$41.33Usually ships in 7-10 business days
2290401-10159-00

(replaces part #
90401-10034-00)

BOLT, UNION$12.49$9.7410+ In-Stock
2390201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
2497017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
2592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2692990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
2790401-10038-00

(replaces part #
90401-10044-00)

BOLT, UNION$13.49$11.062 In-Stock
