1986 Yamaha IT200 Crankcase OEM Parts Diagram

Submodel IT200S - 1986

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

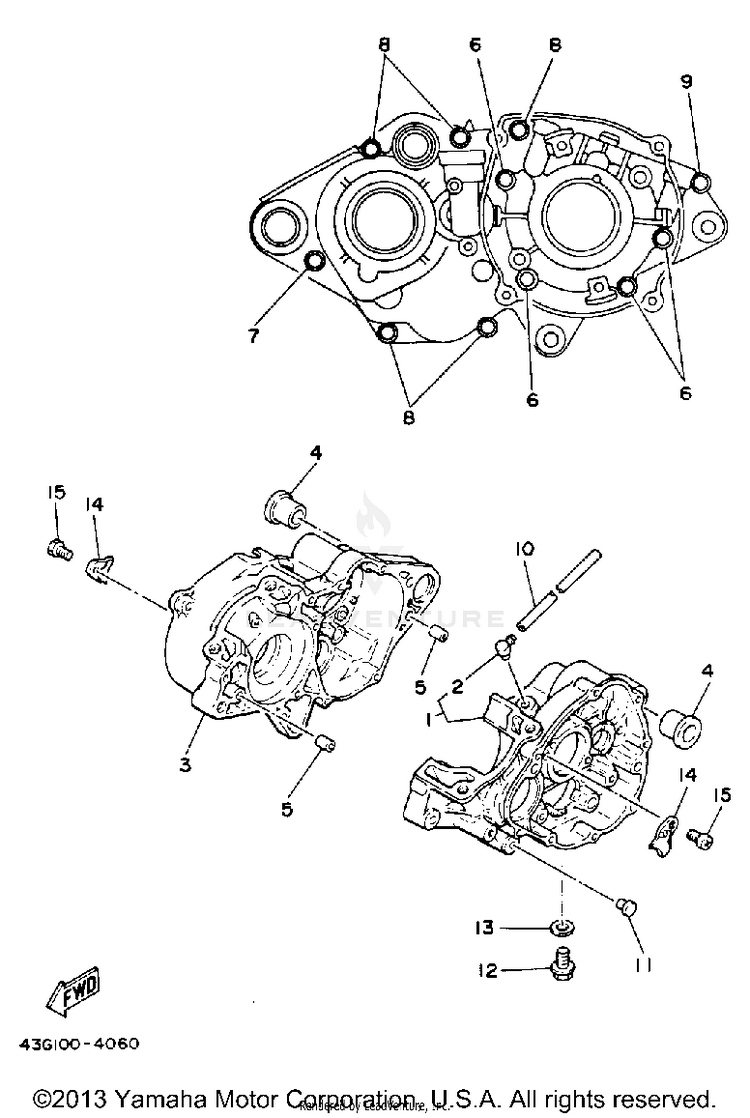

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
143G-15111-00-00CRANKCASE 1$248.99$194.21Not Shipping
2353-13115-01-00CONNECTOR, SUCTION PIPE$7.49$5.8410+ In-Stock
343G-15121-00-00CRANKCASE 2$192.99$150.53Usually ships in 7-10 business days
490387-16781-00COLLAR$14.49$11.88Not Shipping
599530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
691317-06035-00

(replaces part #
91316-06035-00)

BOLT, HEX. SOCKET HEAD$3.90$3.356 In-Stock
791317-06050-00

(replaces part #
91316-06050-00)

BOLT$4.20$3.6110+ In-Stock
890110-06138-00BOLT$6.49$5.0610+ In-Stock
991317-06045-00

(replaces part #
91316-06045-00)

BOLT$5.49$4.2810+ In-Stock
1090445-08684-00

(replaces part #
90445-08376-00)

HOSE$5.49$4.2810+ In-Stock
1190338-07124-00

(replaces part #
90338-07011-00)

PLUG$11.49$8.963 In-Stock
1290340-12097-00PLUG, STRAIGHT SCREW$3.35$2.8810+ In-Stock
1390430-12207-00GASKET$8.49$6.6210+ In-Stock
143R3-15128-01-00HOLDER$23.99$19.67Usually ships in 7-10 business days
1598507-08010-00

(replaces part #
92501-08010-00)

SCREW, PAN HEAD$9.49$7.406 In-Stock
