1986 Yamaha IT200 Electrical OEM Parts Diagram

Submodel IT200S - 1986

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL

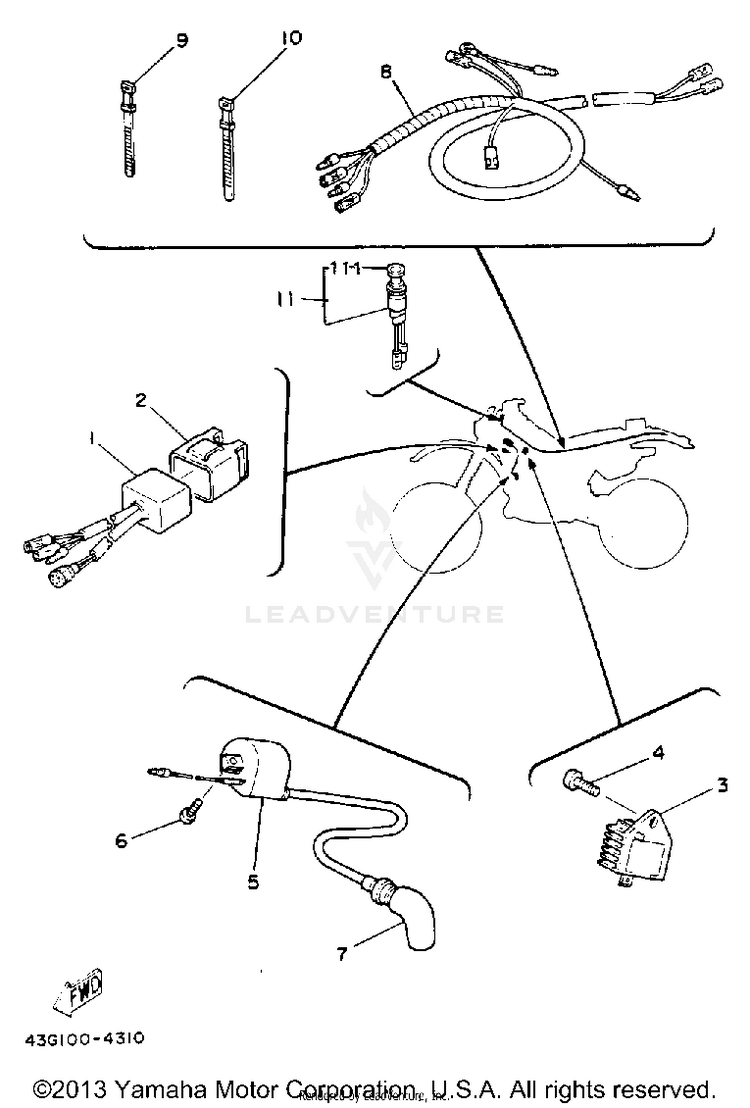

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-23X-85540-20-00CDI UNIT ASSEMBLY$502.99$392.33Not Shipping
14V5-00000-00-XXKNOB AND SCREW SET$7.49$6.74Usually ships in 7-10 business days
22A7-85546-00-00BAND$25.99$21.31Usually ships in 7-10 business days
34F4-81910-60-00VOLTAGE REG ASSEMBLY | STANLEY$181.99$141.951 In-Stock
498507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
543G-82310-40-00IGNITION COIL ASSEMBLY$139.99$109.19Not Shipping
698507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
78DG-82370-00-00

(replaces part #
81E-82370-20-00)

PLUG CAP ASSY | UR$53.99$42.1110+ In-Stock
843G-82590-00-00WIRE HARNESS ASSEMBLY$10.80$8.86Not Shipping
925G-83936-01-00BAND, SWITCH CORD$5.49$4.283 In-Stock
10437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
114V5-82520-00-00LIGHT SWITCH ASSEMBLY$153.99$120.11Not Shipping
