1986 Yamaha IT200 Front Wheel OEM Parts Diagram

Submodel IT200S - 1986

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

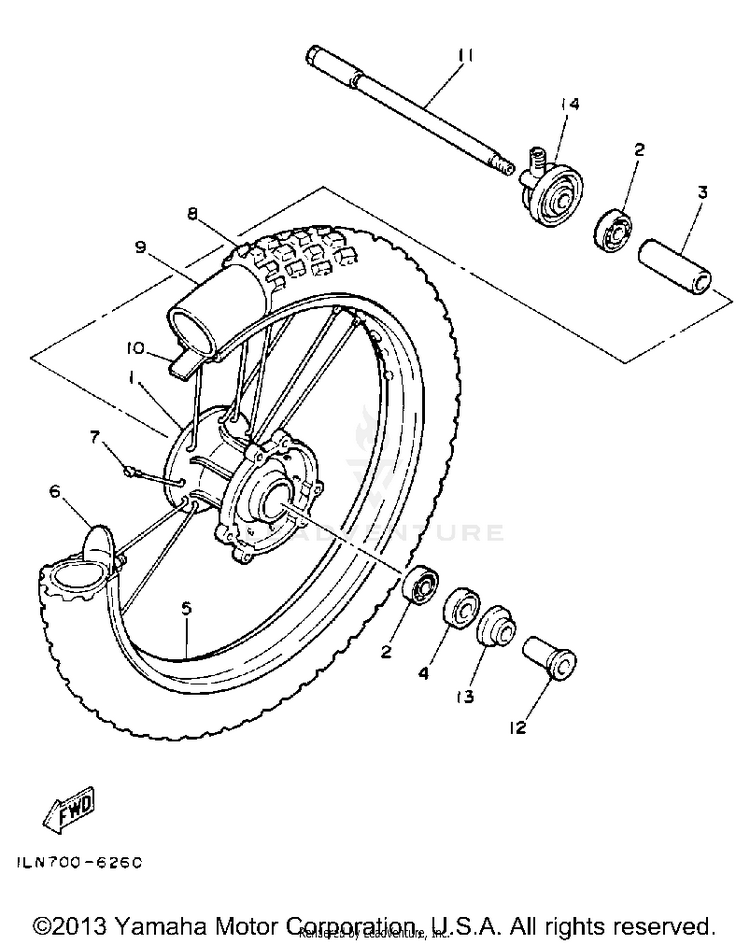

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
134X-25111-02-98HUB, FRONT | LOW GLS BLK$147.99$115.43Usually ships in 7-10 business days
293306-20205-00

(replaces part #
93306-20209-00)

BEARING$42.99$33.5310+ In-Stock
390560-15290-00SPACER$20.99$16.372 In-Stock
493102-20281-00OIL SEAL (SD 20-35-5)$16.49$12.869 In-Stock
594416-21449-00RIM 1.60 | GOLD$659.99$514.79Usually ships in 7-10 business days
64V5-25194-00-00SPACER, BEAD$68.99$53.81Usually ships in 7-10 business days
755U-25104-00-00SPOKE SET, FRONT$136.99$106.85Not Shipping
894109-212F8-0090/90-21 M2EA-TT | INOUE$99.99$82.51Usually ships in 7-10 business days
994230-21126-00TUBE | INOUE$6.99$6.29Not Shipping
1094330-21084-00BAND, RIM (1.60-21) | BRIDGESTONE$18.49$14.4210+ In-Stock
114GY-25181-00-00

(replaces part #
55U-25181-01-00)

AXLE, WHEEL$150.99$117.77Usually ships in 7-10 business days
1290387-15600-00COLLAR$20.99$16.372 In-Stock
13322-25118-00-00COVER, HUB DUST$18.99$14.8110+ In-Stock
143XP-25190-00-00

(replaces part #
1W2-25190-00-00)

GEAR UNIT ASSEMBLY$104.99$81.89Usually ships in 7-10 business days
