1986 Yamaha IT200 Steering OEM Parts Diagram

Submodel IT200S - 1986

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

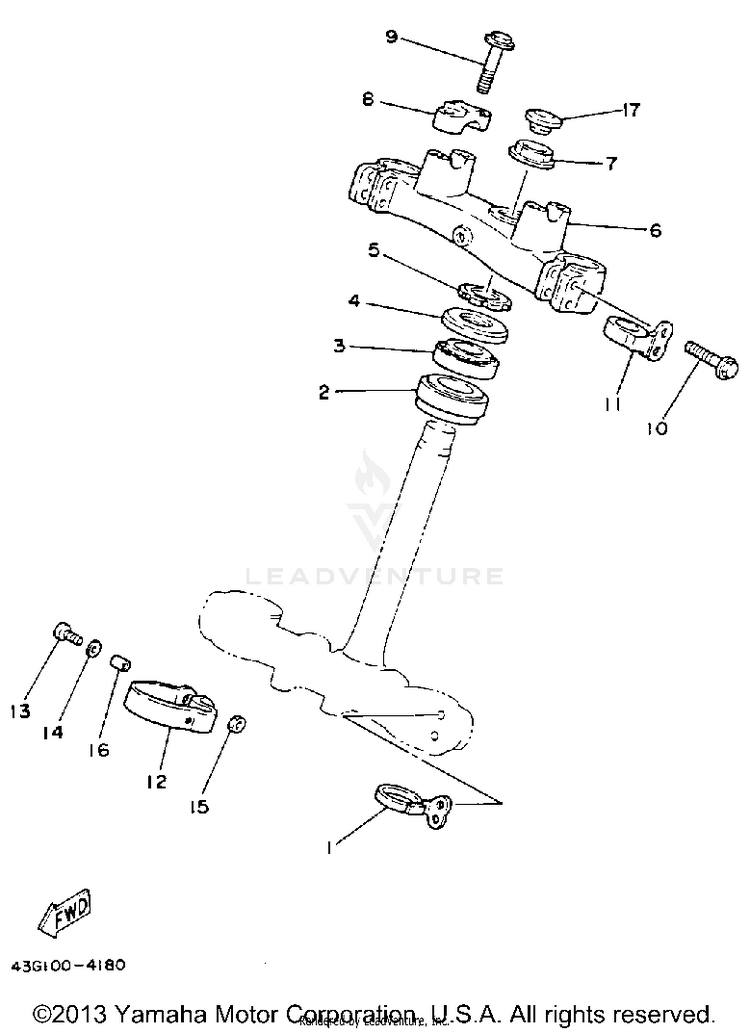

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13R4-23389-00-00GUIDE, CABLE$32.99$25.7310+ In-Stock
293332-00008-00BEARING$73.99$57.714 In-Stock
393332-00001-00BEARING$63.99$49.913 In-Stock
41W1-23416-00-00

(replaces part #
3HE-23416-00-00)

COVER, BALL RACE 2$32.99$25.736 In-Stock
590179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
639W-23435-01-98CROWN, HANDLE | LOW GLS BLK$143.99$112.31Usually ships in 7-10 business days
790179-22330-00NUT$12.49$9.74Not Shipping
81E6-23441-00-00HOLDER, HANDLE UPR (1E6-23441-0$30.99$24.1710+ In-Stock
995817-08035-00

(replaces part #
95811-08035-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
1095814-08040-00

(replaces part #
90105-08091-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
113R4-23317-00-00HOLDER, CABLE$38.99$30.416 In-Stock
1226A-23318-00-00HOLDER, CABLE 1$42.99$33.532 In-Stock
1398517-05030-00

(replaces part #
98501-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
1492990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
1595380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
1690387-06M14-00

(replaces part #
90387-061G2-00)

COLLAR$6.49$5.062 In-Stock
1734K-2319U-00-00CAP$19.99$16.39Not Shipping
