1986 Yamaha IT200 Headlight OEM Parts Diagram

Submodel IT200S - 1986

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

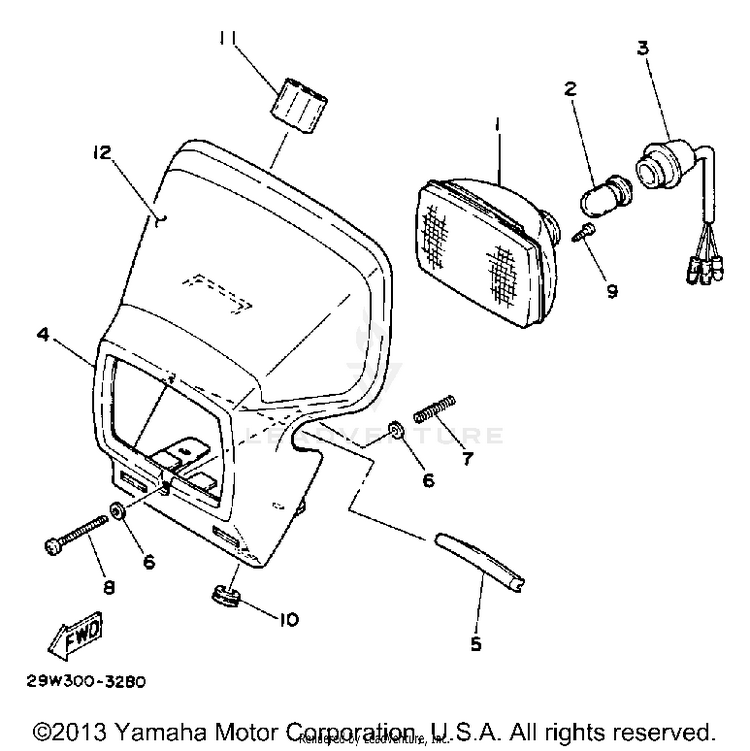

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
118A-84120-00-00LENS ASSEMBLY (26A-84110-00)$33.99$26.515 In-Stock
2527-84114-09-XXBULB, HL 6V25/25W$6.49$5.06Not Shipping
326A-84140-00-00SOCKET CORD ASSEMBLY$39.99$32.79Not Shipping
426A-84111-01-00BODY, HEADLIGHT (26A-84111-00) | SKY BLUE$65.99$51.47Not Shipping
526A-84143-00-00DAMPER, HEADLIGHT STAY$20.99$17.21Not Shipping
692990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
718A-84132-00-00SPRING, SCREW$8.49$6.625 In-Stock
818A-84131-00-00

(replaces part #
97701-40555-00)

SCREW, RIM ADJUSTER$8.49$6.625 In-Stock
997707-40610-00

(replaces part #
97701-40510-00)

SCREW, TAPPING$9.49$7.404 In-Stock
1090480-12053-00GROMMET$8.49$6.6210+ In-Stock
114V5-83592-00-00DAMPER$38.99$31.97Not Shipping
1226A-84141-00-00EMBLEM, HEADLIGHT$13.99$10.91Not Shipping
