1992 Yamaha BREEZE 125 Air Filter OEM Parts Diagram

Submodel YFA1D - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

AIR FILTER

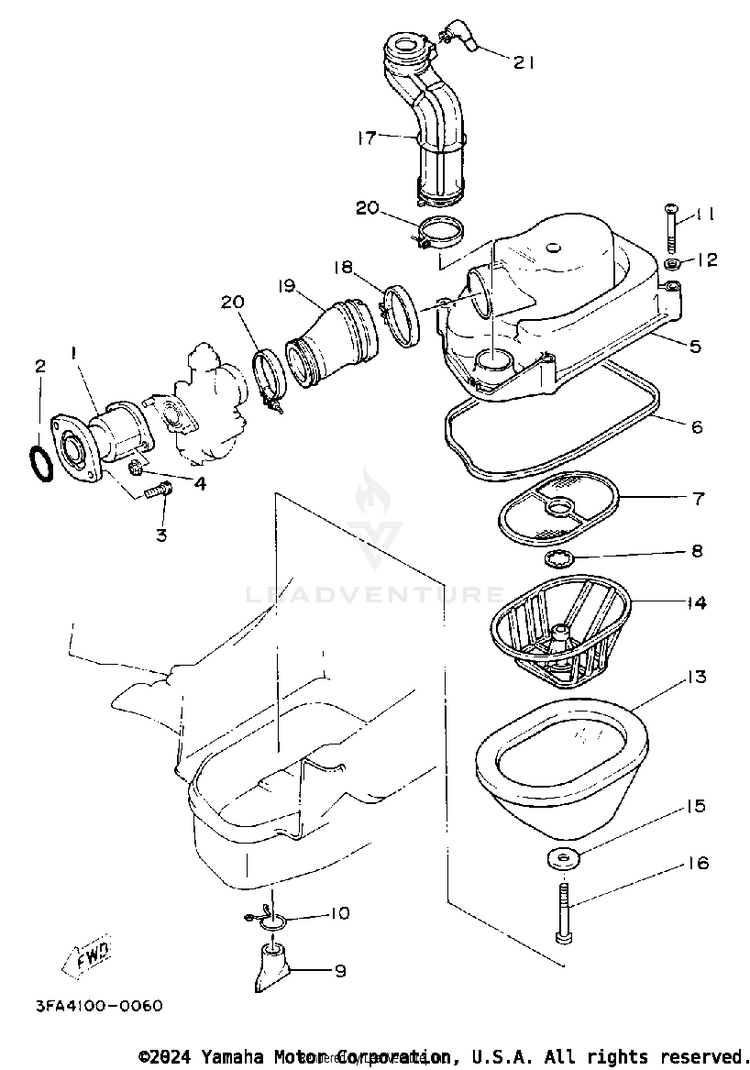

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13FA-13586-00-00JOINT, CARBURETOR 1$84.99$66.299 In-Stock
293210-30611-00O-RING$14.49$11.3010+ In-Stock
391317-06020-00

(replaces part #
91316-06020-00)

BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
495780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
53FA-14412-02-00

(replaces part #
3FA-14412-01-00)

CAP, CLEANER CASE 1$43.99$36.07Usually ships in 7-10 business days
61VJ-14462-00-00

(replaces part #
36F-14452-00-00)

SEAL$19.99$15.5910+ In-Stock
73FA-14472-00-00PLATE, ELEMENT$31.99$24.951 In-Stock
890209-18309-00WASHER (JA1)$2.20$1.98Not Shipping
959V-14457-00-00SEAL$7.49$5.8410+ In-Stock
1090467-22080-00CLIP$9.49$7.4010+ In-Stock
1198580-05550-00SCREW, PAN HEAD$3.75$3.38Usually ships in 7-10 business days
1292990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
132XJ-14451-01-00

(replaces part #
2XJ-14451-00-00)

ELEMENT, AIR CLEANER$35.99$28.077 In-Stock
AFTERMARKET ALTERNATIVE
$12.95$12.8810+ In-Stock
142XJ-14458-00-00GUIDE$34.99$27.2910+ In-Stock
1590209-06096-00WASHER$10.49$8.1810+ In-Stock
1698580-06560-00

(replaces part #
92580-06560-00)

SCREW, PAN HEAD (92580-06560-00$10.49$8.184 In-Stock
173FA-14437-00-00DUCT$63.99$49.91Usually ships in 7-10 business days
1890450-58002-00

(replaces part #
90460-58015-00)

HOSE CLAMP ASSY$18.49$14.4210+ In-Stock
193FA-14453-00-00JOINT, AIR CLEANER 1$42.99$33.534 In-Stock
2090450-45075-00

(replaces part #
90460-45040-00)

HOSE CLAMP ASSY$5.49$4.281 In-Stock
212NL-14419-00-00PIPE$19.99$16.39Usually ships in 7-10 business days
