1992 Yamaha BREEZE 125 Fuel Tank OEM Parts Diagram

Submodel YFA1D - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FUEL TANK

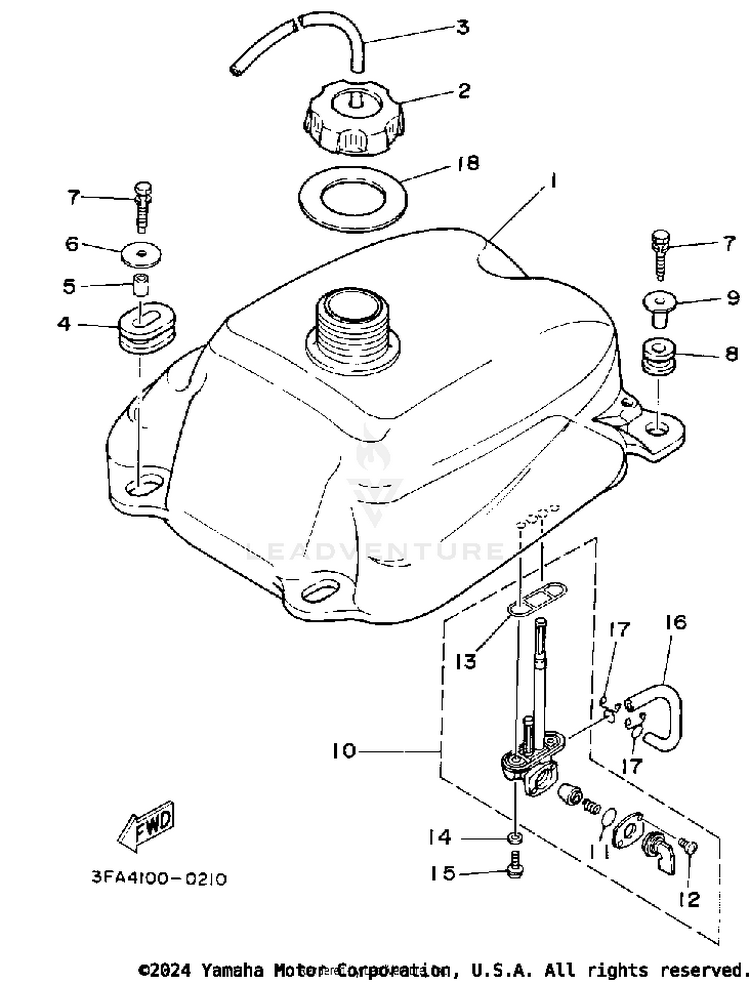

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13FA-24110-00-00FUEL TANK COMP.$197.87$154.34Usually ships in 7-10 business days
22FJ-24610-20-00

(replaces part #
2FJ-24610-00-00)

CAP ASSY$74.99$58.497 In-Stock
35RB-24315-00-00

(replaces part #
90445-09304-00)

PIPE 5$8.49$6.6210+ In-Stock
490480-01400-00GROMMET$14.49$11.3010+ In-Stock
590387-07598-00COLLAR$6.49$5.0610+ In-Stock
690201-06090-00

(replaces part #
90201-060L5-00)

WASHER, PLATE$6.49$5.0610+ In-Stock
790119-06073-00BOLT, WITH WASHER$9.49$7.4010+ In-Stock
890480-18290-00GROMMET$9.49$8.0510+ In-Stock
990387-066H4-00COLLAR$9.49$7.4010+ In-Stock
1036R-24500-01-00FUEL COCK ASSEMBLY 1$83.99$65.512 In-Stock
114X8-24534-00-00SEAL, COCK$14.49$11.307 In-Stock
1298580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
134X8-24512-00-00O-RING$9.49$7.4010+ In-Stock
1490202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
1590149-06011-00SCREW$2.05$1.7610+ In-Stock
1690445-10752-00

(replaces part #
90445-10456-00)

HOSE (L110)$5.49$4.2810+ In-Stock
1790467-090A2-00

(replaces part #
90467-09006-00)

CLIP$4.75$4.0810+ In-Stock
183FA-2414A-00-00COVER, FILLER$16.49$13.52Usually ships in 7-10 business days
