1992 Yamaha BREEZE 125 Oil Pump OEM Parts Diagram

Submodel YFA1D - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

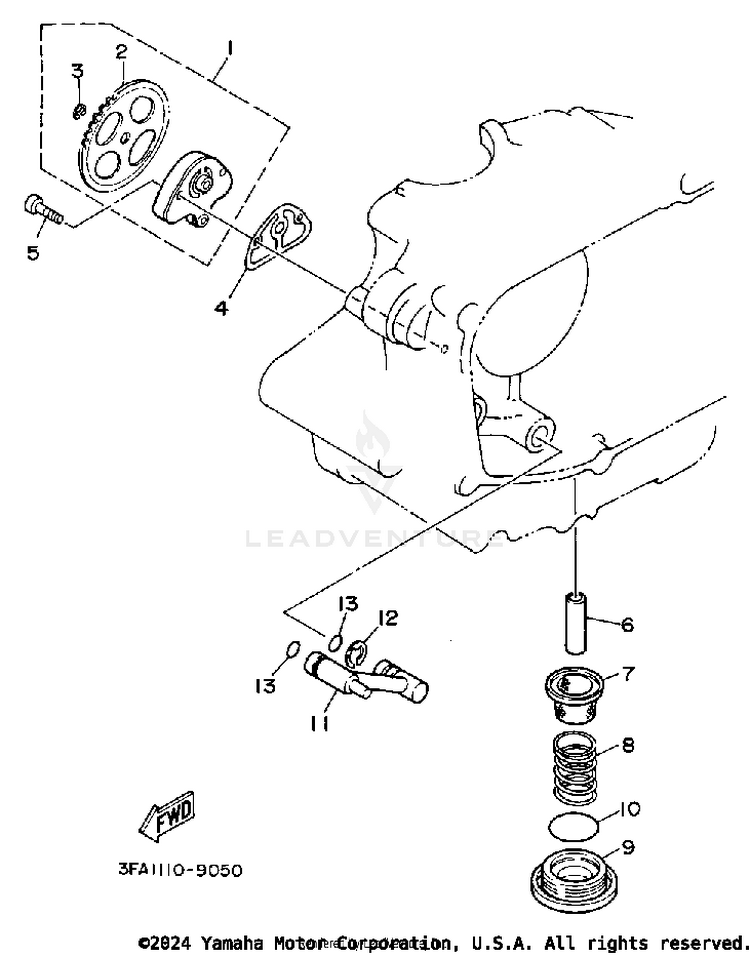

OIL PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13FA-13300-00-00OIL PUMP ASSY$176.99$138.05Usually ships in 7-10 business days
23FA-13325-00-00GEAR, PUMP DRIVEN$50.99$39.77Usually ships in 7-10 business days
399080-05600-00CIRCLIP$9.49$7.402 In-Stock
422F-13329-01-00

(replaces part #
22F-13329-00-00)

GASKET, PUMP COVER$8.49$6.623 In-Stock
590155-06007-00SCREW, FLAT FILLISTER$0.50$0.45Not Shipping
62XK-13416-00-00PIPE, OIL 1$8.49$6.626 In-Stock
751Y-13411-00-00STRAINER, OIL$41.99$32.7510+ In-Stock
890501-18576-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
94HC-15351-00-00

(replaces part #
30X-15351-00-00)

PLUG, DRAIN$19.99$15.5910+ In-Stock
1093210-347A1-00

(replaces part #
93210-35389-00)

O-RING$8.49$6.6210+ In-Stock
113FA-13405-00-00OIL PIPE COMP. 1$41.99$34.43Usually ships in 7-10 business days
1299006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
1393210-08003-00

(replaces part #
93210-08006-00)

O-RING$10.49$8.185 In-Stock
