1992 Yamaha BREEZE 125 Camshaft - Chain OEM Parts Diagram

Submodel YFA1D - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

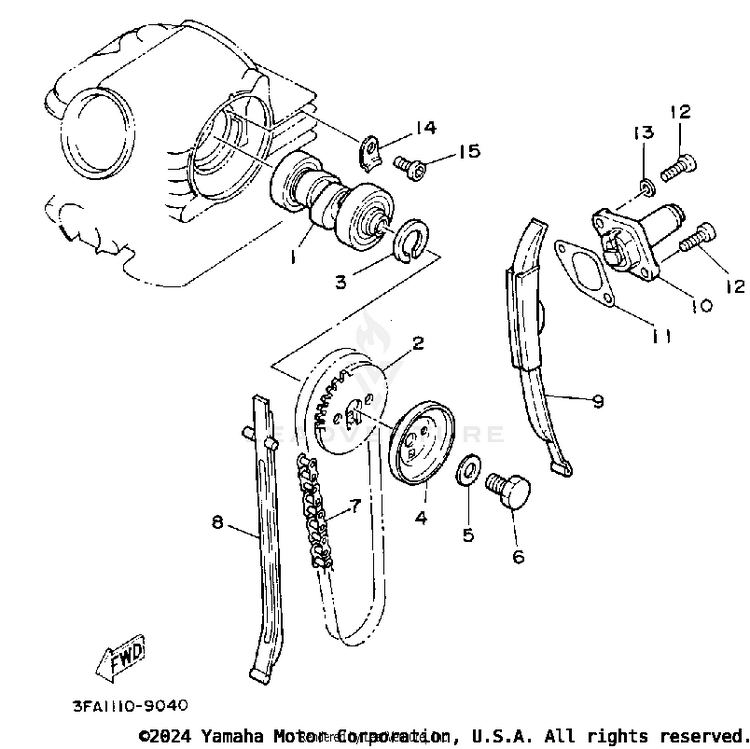

CAMSHAFT - CHAIN

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
150M-12170-01-00

(replaces part #
50M-12170-00-00)

CAMSHAFT ASSY 1$196.99$153.65Usually ships in 7-10 business days
250M-12176-00-00SPROCKET, CAM CHAIN (28T)$26.99$21.055 In-Stock
390387-167L5-00COLLAR$19.49$15.98Usually ships in 7-10 business days
43FA-11145-00-00PLATE, BREATHER 2$22.99$18.85Usually ships in 7-10 business days
590201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
690101-08590-00BOLT$3.50$3.015 In-Stock
794580-25092-00CHAIN (D.I.D 25)$31.99$24.952 In-Stock
850M-12231-01-00

(replaces part #
50M-12231-00-00)

GUIDE, STOPPER 1$33.99$27.87Usually ships in 7-10 business days
950M-12241-01-00

(replaces part #
50M-12241-00-00)

GUIDE, STOPPER 2$41.99$34.43Usually ships in 7-10 business days
1050M-12210-00-00TENSIONER ASSY, CAM CHAIN$129.99$101.39Usually ships in 7-10 business days
114RF-12213-00-00

(replaces part #
3DM-12213-00-00)

GASKET, TENSIONER CASE$7.49$5.848 In-Stock
1291314-06016-00

(replaces part #
91311-06016-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.406 In-Stock
1390430-06014-00GASKET$8.99$7.0110+ In-Stock
144GL-1111F-00-00

(replaces part #
50M-1111F-00-00)

PLATE$8.49$7.64Usually ships in 7-10 business days
1591314-06012-00

(replaces part #
90110-06145-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.409 In-Stock
