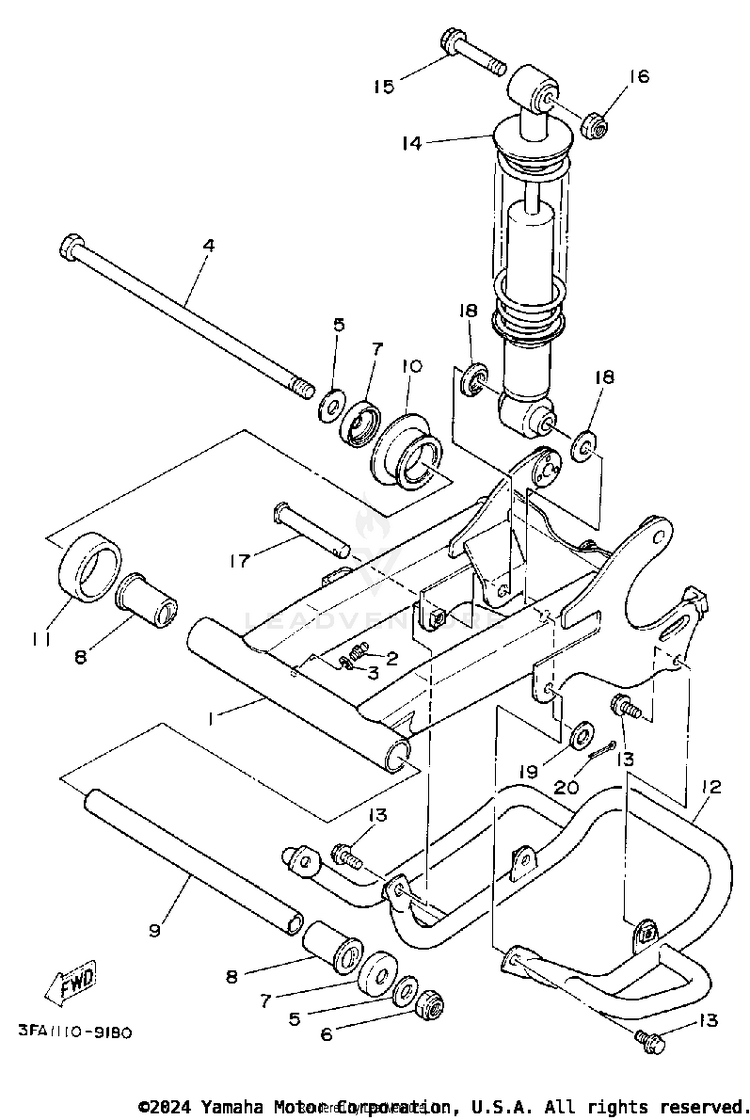

1992 Yamaha BREEZE 125 Swing Arm-Rear Shocks OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	3FA-22110-00-33	REAR ARM COMP. \| YAMAHA BLACK	$382.99	$298.73	Usually ships in 7-10 business days
2	93700-06M03-00	NIPPLE, GREASE	$8.49	$7.60	10+ In-Stock
3	92907-06200-00 (replaces part # 92906-06200-00)	WASHER	$9.49	$7.40	10+ In-Stock
4	2JX-22141-00-00	SHAFT, PIVOT	$24.99	$20.49	Usually ships in 7-10 business days
5	90201-126A7-00	WASHER, PLATE	$10.49	$8.18	10+ In-Stock
6	90185-12134-00	NUT, SELF-LOCKING	$13.49	$10.52	3 In-Stock
7	401-22128-01-00	COVER, THRUST 1	$31.99	$24.95	3 In-Stock
8	90386-18028-00	BUSH	$29.99	$23.39	10+ In-Stock
9	3FA-22126-00-00	COLLAR, DISTANCE	$65.99	$51.47	Usually ships in 7-10 business days
10	2A6-22151-00-00	SEAL, GUARD	$10.99	$8.57	3 In-Stock
11	2A6-22152-00-00	SEAL, GUARD	$5.99	$4.67	2 In-Stock
12	3FA-2219X-00-00	COVER	$180.99	$141.17	Usually ships in 7-10 business days
13	95817-08016-00 (replaces part # 95811-08016-00)	BOLT,FLANGE (JN5)	$5.49	$4.28	10+ In-Stock
14	3FA-22210-00-33	SHOCK ABSORBER ASSY, REAR \| YAMAHA BLACK	$383.99	$317.64	Usually ships in 7-10 business days
15	90105-10388-00	BOLT, FLANGE	$11.49	$8.96	10+ In-Stock
16	90185-10060-00	NUT, SELF-LOCKING	$8.49	$6.62	10+ In-Stock
17	90240-12092-00	PIN, CLEVIS	$11.49	$8.96	3 In-Stock
18	1W1-22128-00-00	COVER, THRUST 1	$20.99	$16.37	10+ In-Stock
19	90201-12047-00 (replaces part # 90201-122A7-00)	WASHER, PLATE	$9.49	$7.40	4 In-Stock
20	91490-30030-00 (replaces part # 91401-30030-00)	PIN, COTTER	$8.49	$6.62	10+ In-Stock
