2000 Yamaha YZ250 Crankcase OEM Parts Diagram

Submodel YZ250 - YZ250M1 - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

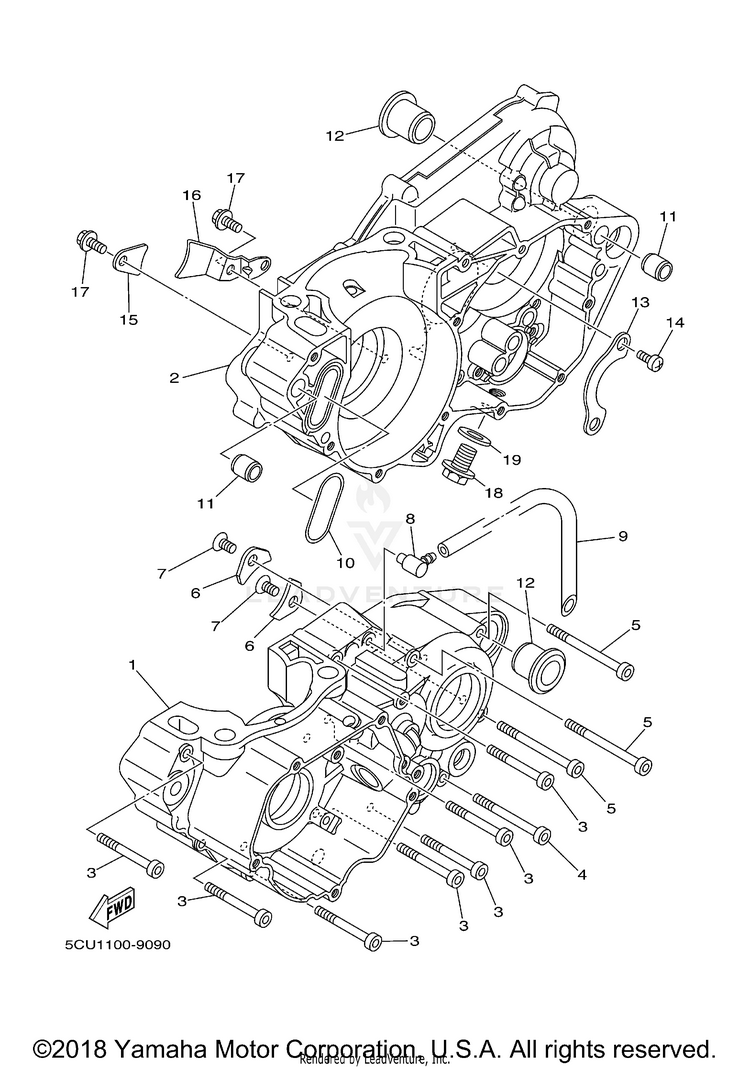

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15CU-15111-02-00

(replaces part #
5CU-15111-01-00)

CRANKCASE 1$728.99$568.61Not Shipping
25CU-15121-01-00CRANKCASE 2$657.99$513.23Not Shipping
391317-06050-00BOLT$4.20$3.6110+ In-Stock
491317-06060-00BOLT$4.05$3.4810+ In-Stock
591317-06070-00BOLT, HEX. SOCKET HEAD$5.49$4.2810+ In-Stock
64JT-15381-01-00PLATE, BEARING COVER$14.49$11.3010+ In-Stock
790151-06052-00

(replaces part #
90149-06326-00)

SCREW$9.49$7.4010+ In-Stock
8353-13115-01-00CONNECTOR, SUCTION PIPE$7.49$5.8410+ In-Stock
990445-084J0-00

(replaces part #
90445-08605-00)

PIPE$20.99$16.3710+ In-Stock
105CU-15454-00-00GASKET 1$19.99$15.5910+ In-Stock
1193612-16254-00PIN, DOWEL$6.49$5.0610+ In-Stock
1290387-1712Y-00COLLAR$23.99$18.71Not Shipping
134L0-17471-00-00PLATE, COVER$22.99$17.9310+ In-Stock
1498517-06012-00

(replaces part #
90157-06077-00)

SCREW,PAN$4.10$3.5310+ In-Stock
154V4-15118-00-00HOLDER$32.99$25.733 In-Stock
165CU-15118-10-00

(replaces part #
5CU-15118-00-00)

HOLDER$8.49$6.622 In-Stock
1795817-06012-00

(replaces part #
90105-06556-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
1890340-12006-00

(replaces part #
90340-12059-00)

PLUG, STRAIGHT SCREW$4.55$4.2010+ In-Stock
1990430-12207-00

(replaces part #
90430-12227-00)

GASKET$8.49$6.6210+ In-Stock
