2000 Yamaha YZ250 Steering Handle Cable OEM Parts Diagram

Submodel YZ250 - YZ250M1 - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING HANDLE CABLE

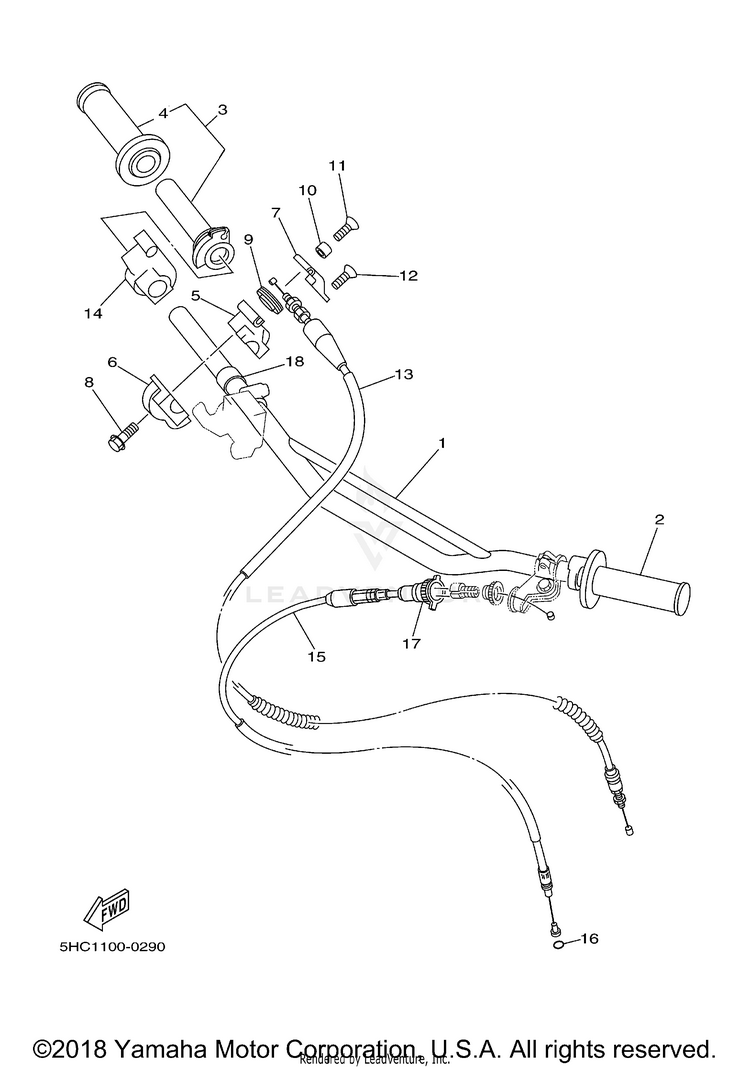

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14XM-26111-00-00HANDLEBAR$89.99$70.19Not Shipping
24GY-26241-00-00GRIP$32.99$25.7310+ In-Stock
34XM-26240-00-00GRIP ASSY$70.99$55.376 In-Stock
44GY-26242-00-00GRIP (RIGHT)$32.99$25.739 In-Stock
51C3-26281-90-00

(replaces part #
4SS-26281-00-00)

CAP, GRIP UPPER$83.99$65.5110+ In-Stock
61C3-26282-90-00

(replaces part #
4SS-26282-10-00)

CAP, GRIP UNDER$55.99$43.6710+ In-Stock
71C3-2628H-90-00

(replaces part #
4SS-2628H-00-00)

CAP, WIRE$17.99$14.0310+ In-Stock
895027-06025-00BOLT, FLANGE$4.16$3.5810+ In-Stock
91C3-26273-90-00

(replaces part #
4SS-26273-00-00)

ROTOR$12.99$10.1310+ In-Stock
1090387-04003-00

(replaces part #
4SS-26259-00-00)

COLLAR$9.49$7.4010+ In-Stock
1198707-04016-00

(replaces part #
4SS-26256-00-00)

SCREW, FLAT HEAD$9.49$7.404 In-Stock
1298707-04010-00

(replaces part #
4SS-2632G-00-00)

SCREW, FLAT HEAD$9.49$7.405 In-Stock
135HC-26311-00-00CABLE, THROTTLE 1$46.99$36.658 In-Stock
AFTERMARKET ALTERNATIVE
$12.99$9.9910+ In-Stock
144SS-26287-01-00COVER, CAP GRIP$22.99$17.9310+ In-Stock
155HC-26335-10-00CABLE, CLUTCH$66.99$52.256 In-Stock
1693210-06632-00

(replaces part #
93210-06001-00)

O-RING$9.49$7.4010+ In-Stock
175HD-26342-00-00BOOT, CABLE$11.99$9.355 In-Stock
1890387-227H7-00COLLAR$9.49$7.4010+ In-Stock
