2000 Yamaha YZ250 Starter OEM Parts Diagram

Submodel YZ250 - YZ250M1 - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

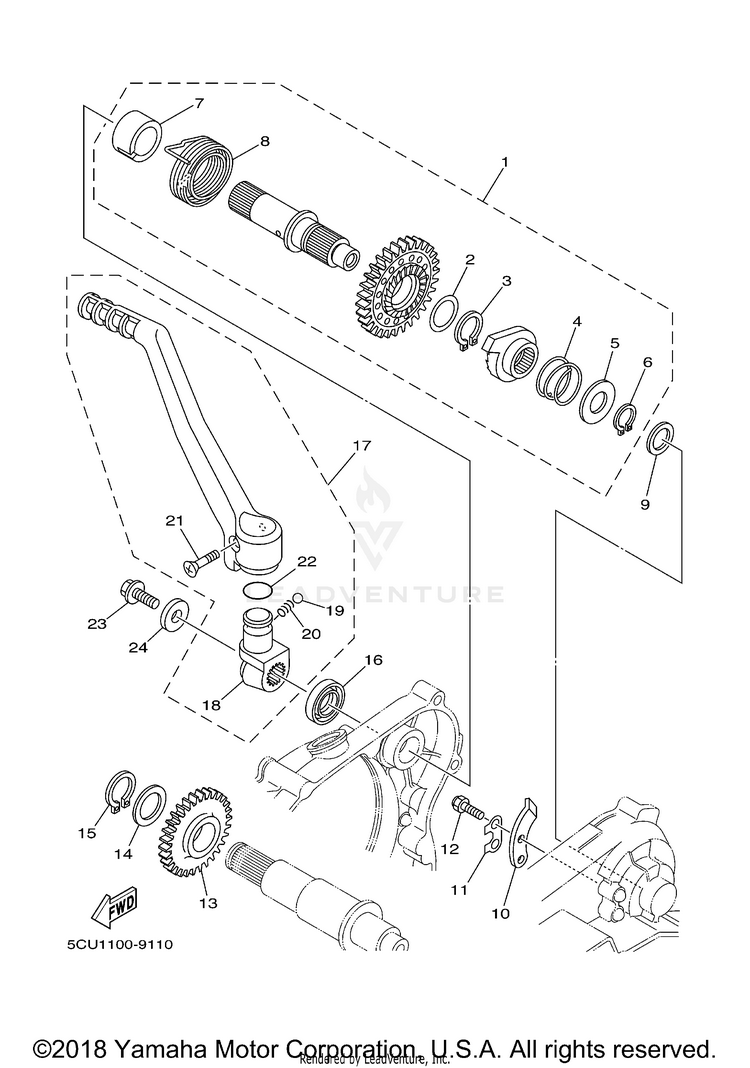

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15CU-15601-01-00KICK SHAFT ASSY$251.99$196.55Not Shipping
290201-20685-00WASHER, PLATE (T=0.5)$8.49$6.621 In-Stock
393410-20038-00CIRCLIP, S-TYPE$4.05$3.4810+ In-Stock
490501-16107-00SPRING, COMPRESSION$8.49$7.64Usually ships in 7-10 business days
590201-167P7-00WASHER, PLATE$10.49$8.60Usually ships in 7-10 business days
699009-16400-00CIRCLIP$6.49$5.064 In-Stock
75GR-15664-00-00

(replaces part #
5CU-15664-00-00)

GUIDE, SPRING$20.99$17.21Usually ships in 7-10 business days
890508-305B0-00SPRING, TORSION$16.49$12.863 In-Stock
990201-162H4-00WASHER, PLATE$10.49$8.188 In-Stock
103Y6-15674-00-00GUIDE, RATCHET WHL$12.99$10.65Usually ships in 7-10 business days
11214-15686-00-00WASHER, LOCK$8.49$6.627 In-Stock
1297017-06016-00

(replaces part #
97027-06016-00)

BOLT$9.49$7.405 In-Stock
135CU-15651-00-00GEAR, KICK IDLE$139.99$109.19Usually ships in 7-10 business days
1490201-20276-00WASHER, PLATE (T=1.0)$9.49$7.4010+ In-Stock
1599009-20400-00CIRCLIP$9.49$7.4010+ In-Stock
1693102-20484-00OIL SEAL$10.49$8.189 In-Stock
174EW-15620-02-00KICK CRANK ASSY$257.99$201.233 In-Stock
183SP-15621-02-00BOSS, KICK CRANK$73.99$57.71Not Shipping
1993501-04011-00BALL$9.49$7.4010+ In-Stock
2090501-13720-00SPRING, COMPRESSION$9.49$7.406 In-Stock
2190152-06010-00SCREW, COUNTERSUNK$10.49$8.1810+ In-Stock
2293210-19216-00O-RING$6.49$5.067 In-Stock
2395027-08020-00BOLT, FLANGE$9.49$7.409 In-Stock
2490201-087A9-00WASHER, PLATE$5.49$4.286 In-Stock
