2000 Yamaha YZ250 Stand Footrest OEM Parts Diagram

Submodel YZ250 - YZ250M1 - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STAND FOOTREST

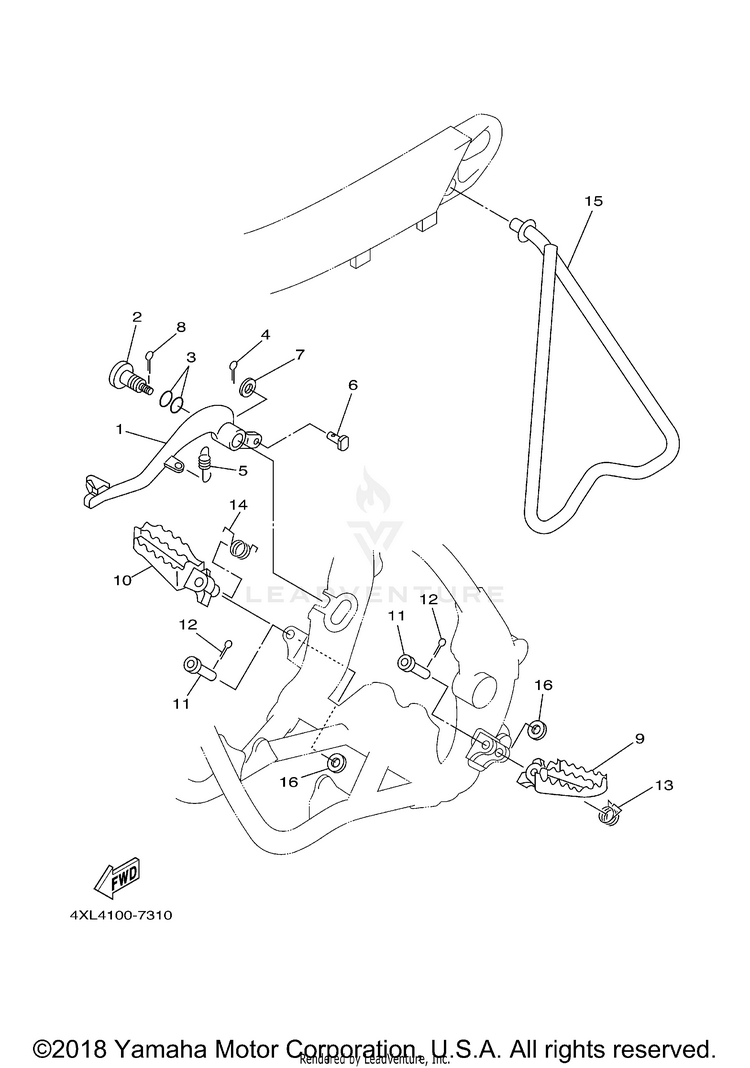

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14XM-27200-21-00

(replaces part #
4XM-27200-00-00)

PEDAL, BRAKE$101.99$79.5510+ In-Stock
24SS-27217-00-00BOLT$46.99$36.656 In-Stock
393210-11073-00O-RING$8.49$6.6210+ In-Stock
491490-20015-00

(replaces part #
91401-20012-00)

PIN. COTTER$2.20$1.8910+ In-Stock
590506-16500-00SPRING, TENSION$9.49$7.4010+ In-Stock
690240-08120-00PIN, CLEVIS$14.49$11.3010+ In-Stock
792990-08600-00

(replaces part #
90201-08089-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
890468-16191-00CLIP$9.49$7.4010+ In-Stock
95ET-27411-01-00

(replaces part #
5ET-27411-00-00)

FOOTREST 1$122.99$95.931 In-Stock
105ET-27421-01-00

(replaces part #
5ET-27421-00-00)

FOOTREST 2$122.99$95.931 In-Stock
1190240-10004-00

(replaces part #
90240-10142-00)

PIN, CLEVIS$15.49$12.0810+ In-Stock
1291490-25020-00

(replaces part #
91401-25015-00)

PIN. COTTER$3.45$2.9710+ In-Stock
1390508-282B8-00SPRING, TORSION$16.49$12.868 In-Stock
1490508-282B9-00SPRING, TORSION$16.49$12.866 In-Stock
155ET-27311-00-00STAND, SIDE$74.99$58.49Not Shipping
1690201-10119-00WASHER, PLATE$1.00$0.8610+ In-Stock
