2000 Yamaha YZ250 Frame OEM Parts Diagram

Submodel YZ250 - YZ250M1 - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

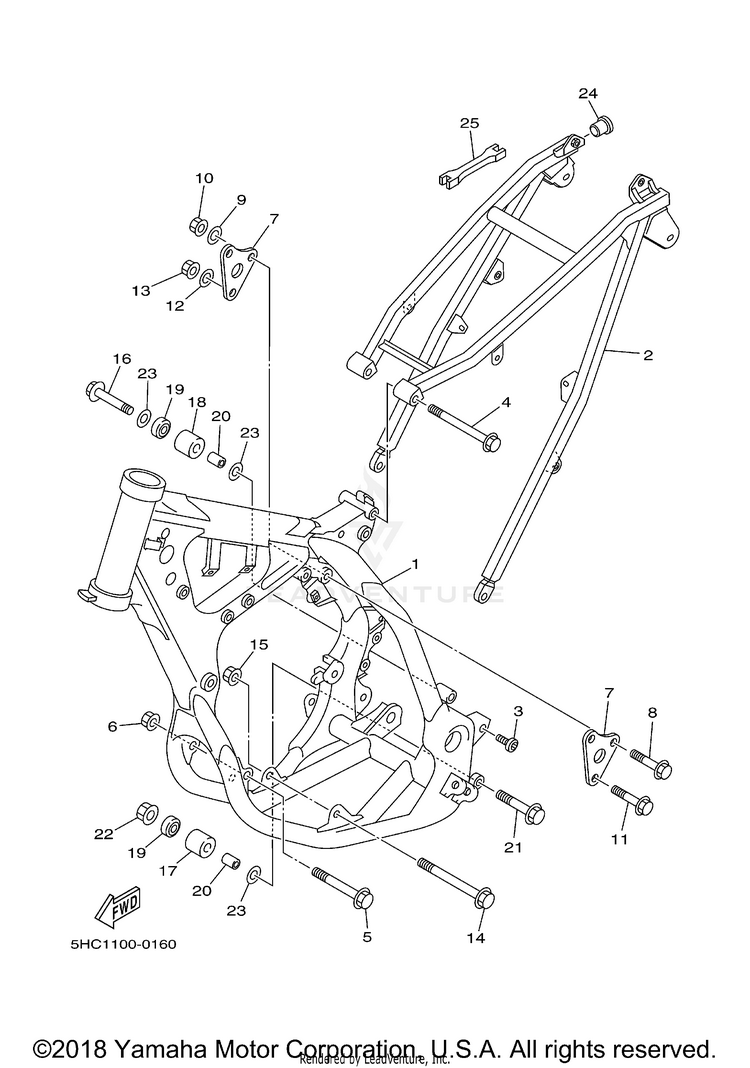

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HC-21110-00-P0FRAME COMP. | DPBMC$1,432.99$1,163.05Usually ships in 7-10 business days
25HC-21190-00-P0REAR FRAME COMP. | DPBMC$574.99$448.49Not Shipping
390110-08096-00BOLT, HEXAGON SOCKET HEAD$11.49$8.9610+ In-Stock
490105-08099-00BOLT, FLANGE$6.49$5.0610+ In-Stock
595817-10110-00BOLT, FLANGE$8.49$6.622 In-Stock
695607-10200-00NUT, U FLANGE$4.15$3.5710+ In-Stock
75CU-21425-00-00BRACKET, REAR UPPER 1$21.99$18.03Not Shipping
895817-08050-00BOLT, FLANGE$3.70$3.1810+ In-Stock
990201-087F0-00

(replaces part #
90201-08730-00)

WASHER, PLATE$6.49$5.0610+ In-Stock
1090185-08169-00NUT, SELF-LOCKING$9.49$7.8910+ In-Stock
1195817-10050-00BOLT, FLANGE$8.49$6.624 In-Stock
1292907-10200-00WASHER, PLAIN$5.49$4.2810+ In-Stock
1395607-10200-00NUT, U FLANGE$4.15$3.5710+ In-Stock
1490109-101A0-00

(replaces part #
90105-10119-00)

BOLT,WASHER BASED$18.49$14.4210+ In-Stock
1595607-10200-00NUT, U FLANGE$4.15$3.5710+ In-Stock
1695027-08040-00BOLT, FLANGE$9.49$7.4010+ In-Stock
173JD-22178-20-00

(replaces part #
3JD-22178-10-00)

TENSIONER$47.99$37.4310+ In-Stock
184EW-22178-01-00

(replaces part #
4EW-22178-00-00)

TENSIONER$16.49$12.863 In-Stock
1993300-60804-00BEARING$13.49$10.5210+ In-Stock
2090387-086N4-00COLLAR$10.49$8.1810+ In-Stock
2195027-08065-00BOLT, FLANGE$11.49$8.968 In-Stock
2295707-08500-00NUT,FLANGE (JN5)$1.95$1.6810+ In-Stock
2390201-086P8-00WASHER, PLATE$5.49$4.2810+ In-Stock
2490338-16148-00PLUG$12.49$9.7410+ In-Stock
255ET-28166-10-00

(replaces part #
5ET-28166-00-00)

WRENCH, HEXAGON$35.99$28.072 In-Stock
