2003 Yamaha BANSHEE 350 Exhaust OEM Parts Diagram

Submodel BANSHEE - YFZ350R - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

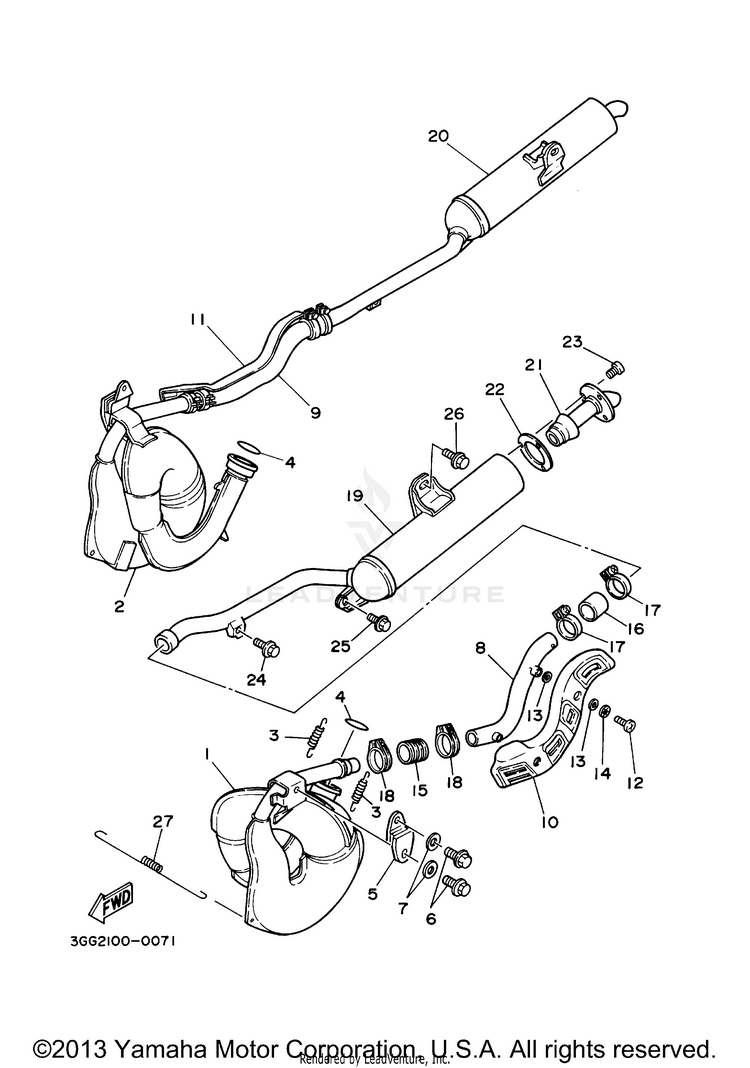

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GU-14610-00-00EXHAUST PIPE ASSY 1$497.99$402.89Not Shipping
22GU-14620-00-00EXHAUST PIPE ASSY 2$497.99$402.89Not Shipping
390507-20030-00SPRING, TENSION$16.49$12.8610+ In-Stock
493210-45742-00O-RING$13.99$10.9110+ In-Stock
52GU-14771-01-00

(replaces part #
2GU-14771-00-00)

STAY, MUFFLER 1$21.99$17.156 In-Stock
695817-08014-00BOLT, FLANGE$2.50$2.1510+ In-Stock
790201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
82GU-14635-00-00JOINT, EXHAUST 3$64.99$50.69Usually ships in 7-10 business days
92GU-14645-00-00JOINT, EXHAUST 4$100.99$78.77Usually ships in 7-10 business days
102GU-14718-00-00PROTECTOR, MUFFLER 1$120.99$94.37Usually ships in 7-10 business days
112GU-14728-00-00PROTECTOR, MUFFLER 2$112.99$88.13Usually ships in 7-10 business days
1298907-06010-00SCREW, BIND$1.80$1.558 In-Stock
134BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
1490206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
151W2-14714-00-00GASKET, MUFFLER$36.99$28.854 In-Stock
162GU-14615-00-00JOINT, EXHAUST 1$64.99$50.6910+ In-Stock
1790460-37130-00

(replaces part #
90460-37026-00)

CLAMP, HOSE$7.99$6.23Not Shipping
1890460-37130-00

(replaces part #
90460-37026-00)

CLAMP, HOSE$7.99$6.23Not Shipping
192GU-14753-01-00SILENCER, EXHAUST$373.99$300.77Not Shipping
202GU-14765-01-00SILENCER$298.99$260.15Not Shipping
212GU-14752-00-00PIPE, OUTLET$68.99$53.81Not Shipping
222GU-14613-10-00GASKET, EXHAUST PIPE$4.90$4.41Usually ships in 7-10 business days
2398907-06010-00SCREW, BIND$1.80$1.558 In-Stock
2495817-08014-00BOLT, FLANGE$2.50$2.1510+ In-Stock
2595817-08014-00BOLT, FLANGE$2.50$2.1510+ In-Stock
2695817-08014-00BOLT, FLANGE$2.50$2.1510+ In-Stock
2790506-18398-00SPRING, TENSION$13.49$10.525 In-Stock
