2003 Yamaha BANSHEE 350 Front Brake Caliper OEM Parts Diagram

Submodel BANSHEE - YFZ350R - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

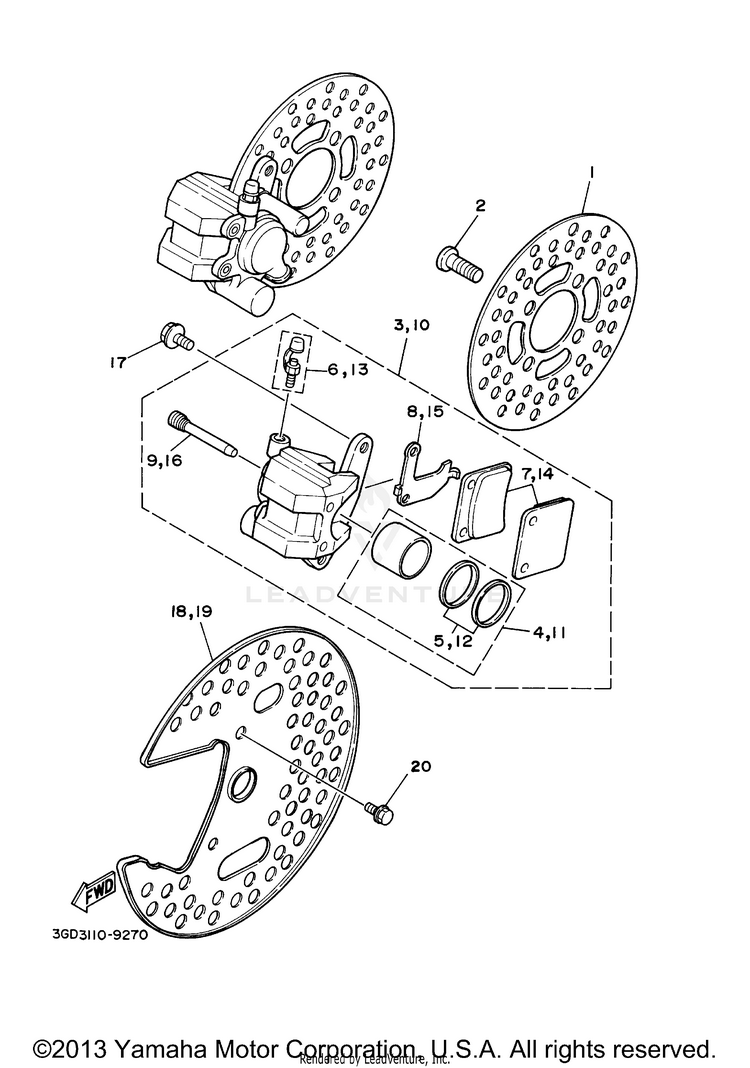

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13GD-2582T-10-00

(replaces part #
3GD-2582T-00-00)

DISC, BRAKE (LEFT)$219.99$171.592 In-Stock
290109-08087-00

(replaces part #
90149-08268-00)

BOLT$3.15$2.7110+ In-Stock
35LP-2580T-00-00CALIPER ASSY (LEFT)$412.99$322.13Usually ships in 7-10 business days
43GD-W0057-00-00PISTON ASSY, CALIPER$71.99$56.154 In-Stock
53GD-W0047-00-00CALIPER SEAL KIT$16.49$12.8610+ In-Stock
636Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
75LP-W0045-00-00BRAKE PAD KIT$60.99$47.575 In-Stock
AFTERMARKET ALTERNATIVE
$29.99$19.9910+ In-Stock
83GD-25827-00-00SHIM, CALIPER$11.99$9.3510+ In-Stock
93GD-25933-00-00PIN, PAD$31.99$24.957 In-Stock
105LP-2580U-00-00CALIPER ASSY (RIGHT)$412.99$322.13Usually ships in 7-10 business days
113GD-W0057-00-00PISTON ASSY, CALIPER$71.99$56.154 In-Stock
123GD-W0047-00-00CALIPER SEAL KIT$16.49$12.8610+ In-Stock
1336Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
145LP-W0045-00-00BRAKE PAD KIT$60.99$47.575 In-Stock
AFTERMARKET ALTERNATIVE
$29.99$19.9910+ In-Stock
153GD-25828-00-00SHIM, CALIPER$4.80$4.134 In-Stock
163GD-25933-00-00PIN, PAD$31.99$24.957 In-Stock
1795817-08014-00

(replaces part #
90105-08538-00)

BOLT, FLANGE$2.50$2.1510+ In-Stock
183GD-2514A-10-00RING, WHEEL 1 (LEFT)$63.99$49.912 In-Stock
193GD-2515A-10-00RING, WHEEL 2 (RIGHT)$62.99$49.132 In-Stock
2095817-06010-00

(replaces part #
95807-06010-00)

BOLT,FLANGE$5.49$4.2810+ In-Stock
