2003 Yamaha BANSHEE 350 Shift Cam Fork OEM Parts Diagram

Submodel BANSHEE - YFZ350R - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

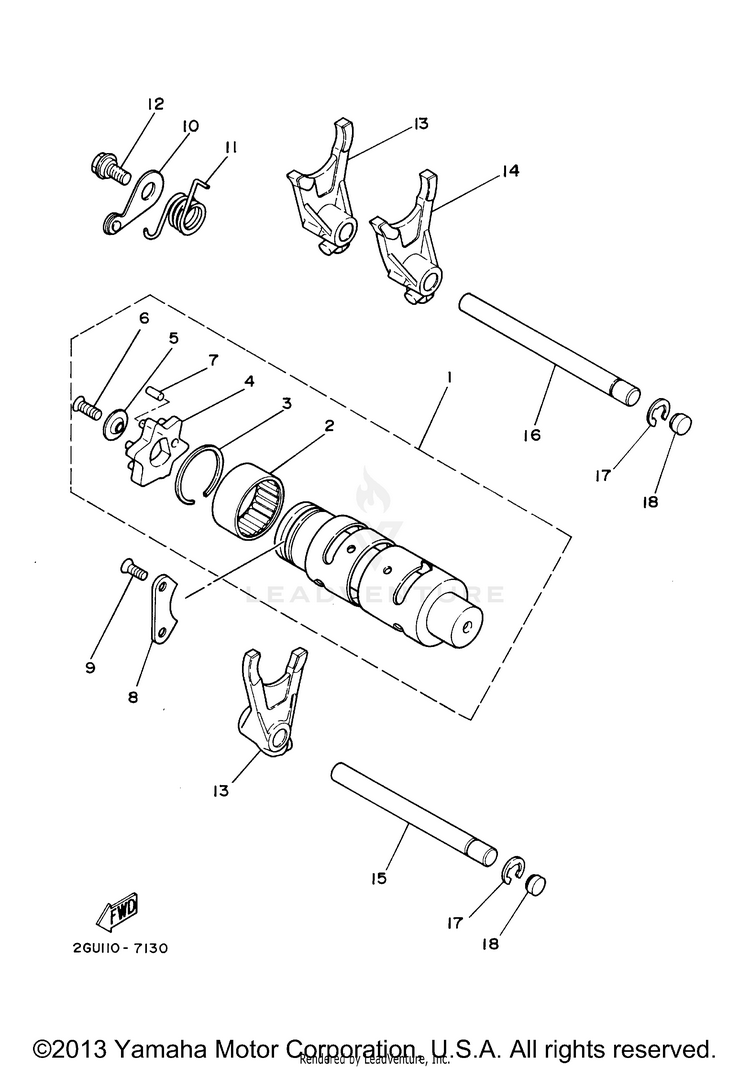

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GU-18540-00-00SHIFT CAM ASSY$157.99$123.23Not Shipping
293315-23612-00BEARING, CYL. #15$36.99$28.853 In-Stock
393440-34025-00CIRCLIP$8.49$6.623 In-Stock
44L0-18185-00-00SEGMENT$37.99$29.63Not Shipping
53R4-18561-00-00PLATE, SIDE 1$8.49$6.624 In-Stock
698707-05016-00SCREW, FLAT HEAD$7.99$6.233 In-Stock
793604-12037-00PIN, DOWEL$9.49$7.405 In-Stock
84L0-18562-00-00PLATE, STOPPER 2$26.99$21.055 In-Stock
998707-06014-00SCREW, FLAT HEAD$9.49$7.4010+ In-Stock
104L0-18140-00-00STOPPER LEVER ASSY$26.99$21.054 In-Stock
1190508-29728-00SPRING, TORSION$6.99$5.543 In-Stock
1290109-06190-00

(replaces part #
90109-063F7-00)

BOLT$5.99$4.6710+ In-Stock
132GU-18511-00-00FORK, SHIFT 1$78.99$61.6110+ In-Stock
142GU-18512-00-00FORK, SHIFT 2$82.99$64.7310+ In-Stock
154L0-18531-01-00BAR, SHIFT FORK GUIDE 1$27.99$21.833 In-Stock
1629L-18535-00-00BAR, SHIFT FORK GUIDE 2$34.99$27.294 In-Stock
1793430-08007-00CIRCLIP, E-TYPE$9.49$7.4010+ In-Stock
1890334-10006-00PLUG, STRAIGHT$6.99$5.45Not Shipping
