2003 Yamaha BANSHEE 350 Headlight OEM Parts Diagram

Submodel BANSHEE - YFZ350R - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

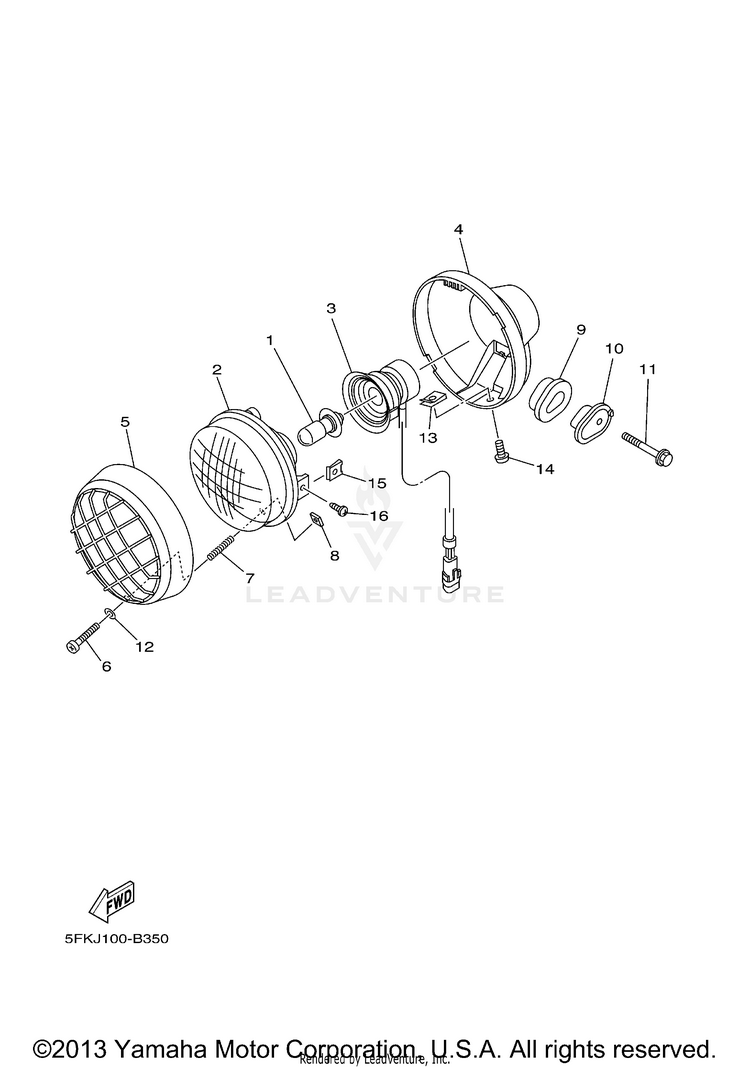

HEADLIGHT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KB-84314-01-00BULB (12V-30/30W)$42.99$33.5310+ In-Stock
25KM-84320-01-00

(replaces part #
5KM-84320-00-00)

LENS ASSY$106.99$83.454 In-Stock
35EH-84340-00-00SOCKET CORD ASSY 1$62.99$49.139 In-Stock
42GU-84330-70-00BODY ASSY | YB$79.99$62.397 In-Stock
54KB-84169-00-00GUARD, HEADLIGHT$26.99$21.0510+ In-Stock
698507-03540-00

(replaces part #
2GU-84331-00-00)

SCREW, PAN HEAD$2.35$2.0210+ In-Stock
72GU-84332-00-00SPRING, SCREW$8.49$6.628 In-Stock
82GU-84334-00-00NUT, ADJUSTING$8.49$6.627 In-Stock
92GU-84345-00-00DAMPER, HEADLIGHT$8.49$6.6210+ In-Stock
102GU-84338-00-00COLLAR, BODY FITTING$24.99$19.4910+ In-Stock
1195817-08055-00

(replaces part #
95807-08055-00)

BOLT, FLANGE$4.21$3.6210+ In-Stock
124KB-84344-00-00WASHER, PLAIN$4.40$3.784 In-Stock
134KB-84117-00-00NUT$10.99$8.5710+ In-Stock
144KB-84526-00-00SCREW$8.49$6.6210+ In-Stock
155LP-84334-00-00NUT, ADJUSTING$8.49$6.624 In-Stock
164KB-84365-00-00SCREW$8.49$6.6210+ In-Stock
