2004 Yamaha V-Star Silverado XVS1100 Front Wheel OEM Parts Diagram

Submodel V STAR 1100 SILVERADO - XVS11ATSC - 2004

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

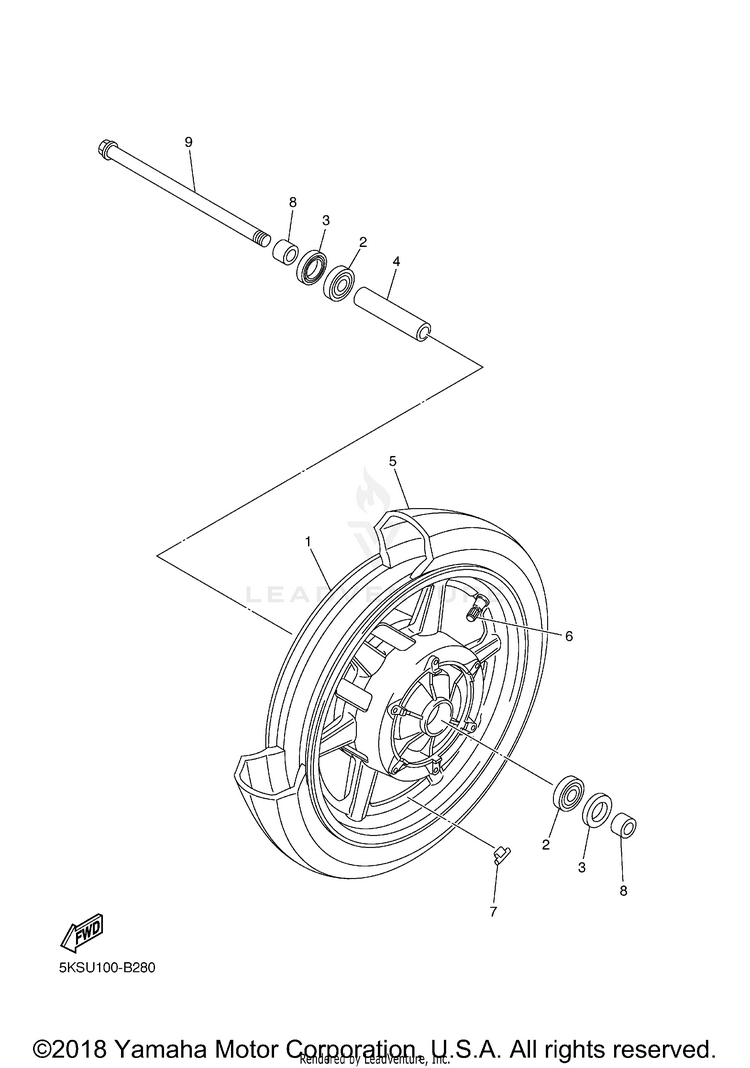

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15KS-25168-00-MACAST WHEEL, FRONT | TGM$597.99$500.65Usually ships in 7-10 business days
293306-30317-00BEARING$43.99$34.3110+ In-Stock
393102-28022-00OIL SEAL$16.49$12.8610+ In-Stock
490387-173M5-00COLLAR$33.99$27.87Usually ships in 7-10 business days
594113-16025-00

(replaces part #
94113-16008-00)

TIRE (130/90-16 M/C 67H D404F) | UR DUNLOP$302.99$236.33Usually ships in 7-10 business days
594113-16009-00TIRE (130/90-16 M/C 67S G703) | UR BRIDGESTONE$178.99$146.14Usually ships in 7-10 business days
693900-00030-00VALVE, RIM (TR412) | TAIHEIYO$18.49$14.425 In-Stock
75MT-25398-20-00BALANCER, WHEEL (30G) | UN$46.99$38.53Usually ships in 7-10 business days
75MT-25398-00-00BALANCER, WHEEL (10G) | UN$18.99$15.574 In-Stock
75MT-25398-10-00BALANCER, WHEEL (20G) | UN$18.99$15.57Usually ships in 7-10 business days
890387-173R6-00COLLAR$33.99$27.87Usually ships in 7-10 business days
95KS-25181-00-00AXLE, WHEEL$79.99$62.39Usually ships in 7-10 business days
